If you've built or upgraded a high-end gaming PC in the last few years, you've encountered the 12VHPWR connector — the new 16-pin GPU power connector that replaced the traditional 8-pin PCIe connectors on top-tier graphics cards. You've probably also seen the headlines: melted connectors, damaged GPUs, online controversy.
Here's what 12VHPWR actually is, why some early implementations had problems, and how to use it safely.
What is 12VHPWR?
12VHPWR (sometimes called "12+4 pin" or formally "12V-2x6" in its updated revision) is a 16-pin power connector designed for high-power GPUs. It was introduced as part of the PCIe 5.0 specification and first appeared on NVIDIA's RTX 30 series, becoming the standard for the RTX 40 series.

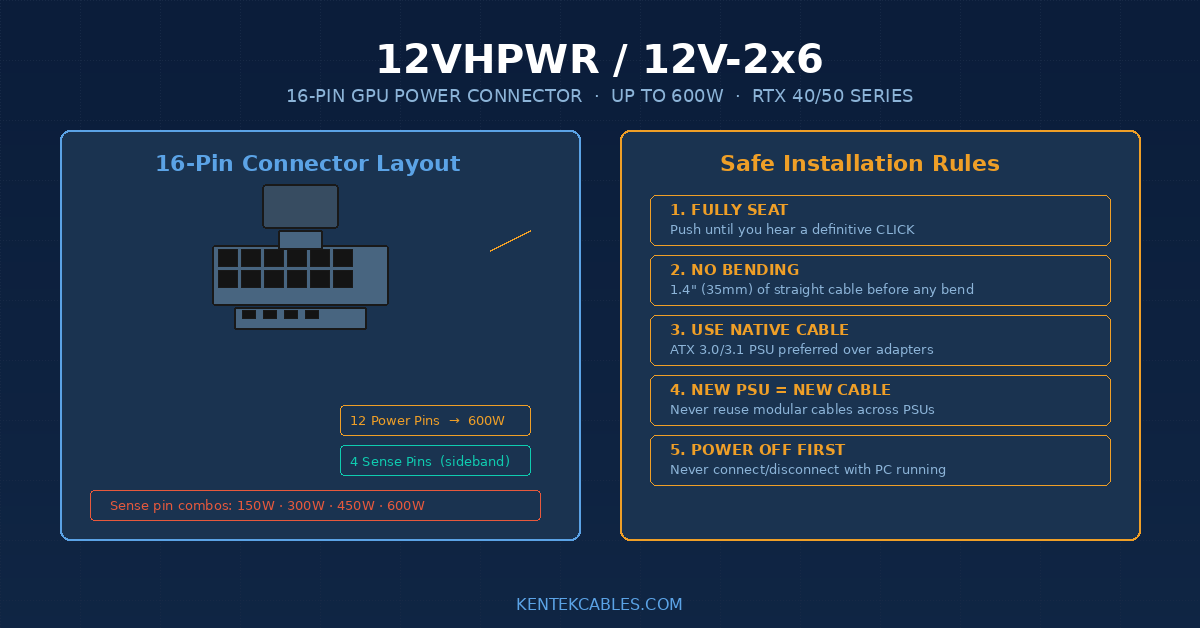

Connector structure:
-
12 power pins (carries the actual power)
-
4 sense/sideband pins (allows the GPU to communicate with the PSU)
-
Single connector instead of multiple 8-pin PCIe connectors
-
Capable of delivering up to 600W through a single cable
Why it was created: As graphics cards grew more power-hungry, the traditional 8-pin PCIe connector (which delivers up to 150W per connector) became inadequate. The RTX 3090 needed two 8-pin connectors (300W); the RTX 4090 needs up to 450W of stable power delivery. Rather than continuing to add more 8-pin connectors, the industry standardized a single high-density connector.
The melting controversy
When the RTX 4090 launched in October 2022, reports began circulating of connectors melting at the GPU end. Hundreds of cards were damaged. Online debate raged: was it user error? Manufacturing defects? A fundamental design flaw?
The actual cause (per investigation):
-
Insufficient insertion — If the connector wasn't fully seated, the contact pressure on the power pins was uneven, causing localized overheating
-
Side-loading — Aggressive cable bending right at the connector created uneven pin contact
-
Design margins — The original 12VHPWR specification had less margin for partial insertion than ideal
The fix:
-
PCI-SIG released an updated specification called 12V-2x6 in late 2022
-
Shorter "sense pins" require the connector to be MORE FULLY inserted before they make contact
-
A partially inserted 12V-2x6 simply won't power the GPU at all (rather than partially powering it and melting)
-
Improved manufacturing standards
-
Better user education on proper installation
Newer GPUs (RTX 4090 manufactured after late 2022, and all RTX 50 series) use 12V-2x6 instead of the original 12VHPWR. They look identical and are mechanically compatible, but the updated specification is safer.
How to use it safely
If you have an RTX 4080, 4090, or any other GPU with 12VHPWR/12V-2x6:
1. Use a Native Cable When Possible
The safest option is a power supply with a native 12V-2x6 cable — one that plugs directly from the PSU to the GPU without adapters. ATX 3.0 / ATX 3.1 power supplies have this.
If you're using a 4x 8-pin to 12VHPWR adapter (as supplied with many RTX 4090 cards), it's not unsafe per se, but it's more cluttered and has more potential failure points. Native cables are cleaner.
2. Fully Seat the Connector
This is the single most important rule. Push the connector in until you hear/feel a definitive click. The plastic latch must fully engage.
How to verify:
-
Look for the latch fully visible past the GPU's PCB
-
No gap between the connector housing and the GPU port
-
Cable feels solid when gently tugged
-
You may need significant force — these connectors fit more tightly than 8-pin PCIe
3. Don't Bend Right at the Connector
Allow at least 1.4 inches (35mm) of straight cable before any bend. If you need to route the cable upward toward a window in your case:
-
Use a 180° angle adapter designed for 12VHPWR
-
Use a 90° angle adapter for routing the cable to the side
-
DON'T just bend the cable manually — this stresses the pins
Angle adapters cost $15-30 and are well worth it for the cable management AND safety.
4. Don't Reuse Old Cables
If you upgrade your power supply, get new 12VHPWR/12V-2x6 cables that came with the NEW power supply. Modular cables from different PSU brands have different pinouts and can damage your GPU.
5. Power Off Before Connecting/Disconnecting
Standard practice, but worth emphasizing — never connect or disconnect this connector with the PC powered on.
What's the connector layout?
The 12 power pins are in a 6×2 grid:
-
6 pins on +12V (top row)
-
6 pins on ground (bottom row)
The 4 sense pins (smaller) are below the main 12 pins. They communicate the cable's power capability to the GPU:
-
150W cable — 1 set of sense pins active
-
300W cable — Different set active
-
450W cable — Different set active
-
600W cable — All sense pins active
This means the GPU "knows" how much power the cable can deliver and may limit performance if connected with a lower-capacity cable.
12VHPWR vs 12V-2x6 — Spotting the difference
You can't tell them apart visually — they look identical. The differences are internal:
-
12VHPWR (original): Sense pins same length as power pins
-
12V-2x6 (updated): Sense pins shorter, requiring full insertion
If your PSU and GPU were both manufactured in 2023 or later, you almost certainly have 12V-2x6.
Adapters
NVIDIA provides a "4x 8-pin to 12VHPWR" adapter with most RTX 4090 cards. Other adapter types exist:
4x 8-pin PCIe → 12VHPWR The most common adapter. Combines four 8-pin PCIe connectors from your PSU into one 12VHPWR for the GPU. Works with any ATX 2.x power supply that has four available 8-pin PCIe connectors.
3x 8-pin PCIe → 12VHPWR (Lower power) Some adapters use only three 8-pin connectors. These are limited to 450W maximum.
2x 8-pin PCIe → 12VHPWR (Reduced power) Limited to 300W. Only suitable for GPUs that don't pull more than 300W.
90° angle adapter (12VHPWR → 12VHPWR) A short adapter that lets the cable route at a right angle from the GPU. Essential for cases where the cable would otherwise bend hard against a side panel.
180° angle adapter (12VHPWR → 12VHPWR) For routing the cable back toward the case's other side. Used in some open-air builds.
Power supply considerations
ATX 3.0 / ATX 3.1 power supplies:
-
Include native 12V-2x6 cables
-
Designed for the transient power spikes of modern GPUs
-
Recommended for RTX 4080/4090 and any future high-end card
Older ATX 2.x power supplies:
-
Use the 4x 8-pin → 12VHPWR adapter
-
Must have sufficient wattage AND enough 8-pin PCIe connectors
-
Verify your PSU can sustain the GPU's peak power draw plus the rest of your system
Recommended PSU wattage:
-
RTX 4070 / 4070 Ti: 750W PSU
-
RTX 4080: 850W PSU
-
RTX 4090: 1000W PSU (1200W for overclocking)
-
RTX 50 series: 850-1500W depending on tier
Troubleshooting
Problem: GPU not detected after install. Check that the 12VHPWR connector is fully seated. The sense pins (shorter ones) must make contact for the GPU to receive power.
Problem: Random GPU crashes under load. Could be insufficient PSU wattage OR a marginal 12VHPWR connection. Try a different PSU cable or a higher-wattage PSU.
Problem: Connector feels warm. Mild warmth (room temperature + a few degrees) is normal. If it's hot to the touch under load, IMMEDIATELY power down and reseat the connector. Replace the cable if the issue persists.
Problem: Cable came loose. Power down immediately. Inspect the connector for any signs of melting or discoloration. If damaged, replace both the cable AND verify the GPU port isn't damaged.
Looking ahead
The PCIe 6.0 specification will continue to use 12V-2x6 for at least the next 2-3 generations of GPUs. The connector is here to stay.
For builders, the key is using quality cables, proper installation, and avoiding aggressive cable bends near the connector. The melting issues of 2022 are largely solved with the 12V-2x6 revision and proper installation practices.
