The 3.5mm audio jack — also called a "headphone jack," "mini jack," or "1/8-inch jack" — has been the universal standard for portable audio since the Sony Walkman in 1979. It's still found on speakers, mixers, sound cards, and most non-Apple phones. But not all 3.5mm jacks are created equal.
If you've ever plugged headphones with a built-in microphone into your computer and discovered the mic doesn't work, you've encountered the TS/TRS/TRRS confusion. Here's what those acronyms mean and why they matter.

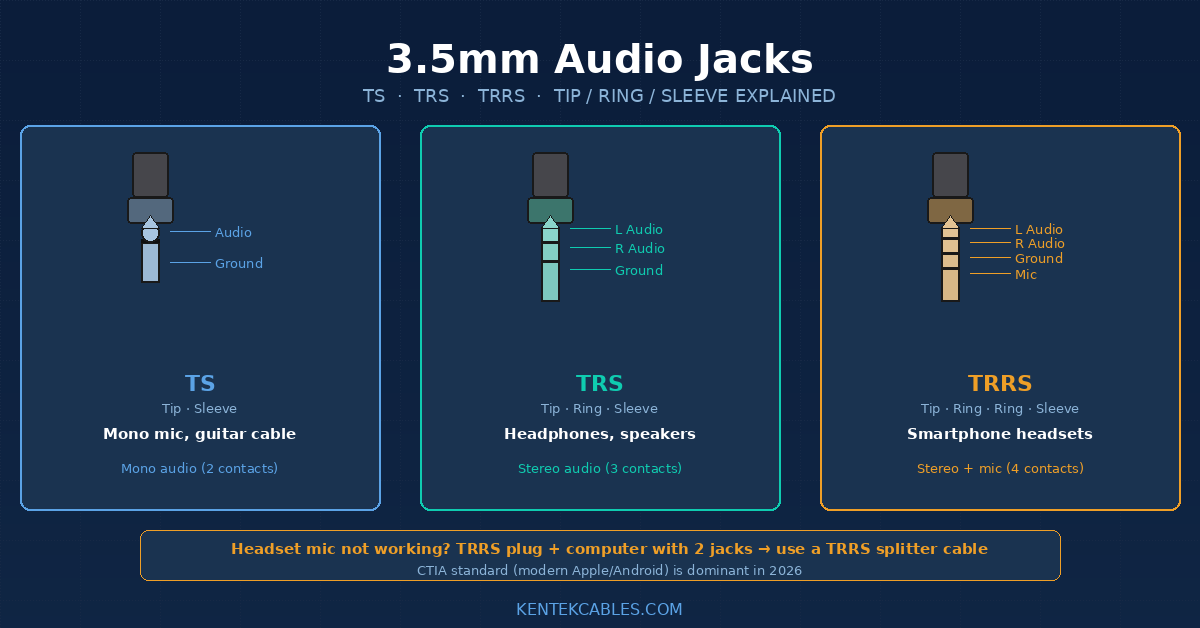

The naming convention: T, R, S
3.5mm jack names describe the physical structure of the connector. The plug has multiple metal sections separated by black plastic insulator bands. Each metal section is a separate electrical contact:
T = Tip — The very end of the plug R = Ring — A middle section (there can be multiple rings) S = Sleeve — The base section nearest the plastic housing
So "TRRS" means a plug with Tip, two Rings, and a Sleeve — four contacts total.
TS (Tip Sleeve) — Mono audio, 2 contacts
A TS plug has just two contacts: tip and sleeve. The tip carries the audio signal, the sleeve is ground.
You'll find TS connectors on:
-
Mono microphones
-
Guitar cables (the 1/4" version)
-
Some musical instrument outputs
-
Mono audio applications generally
A TS plug only carries one audio channel (mono). Two TS plugs together can carry stereo, but you don't see this in 3.5mm form often.
TRS (Tip Ring Sleeve) — Stereo audio, 3 contacts
The most common 3.5mm configuration. TRS has three contacts:
-
Tip — Left audio channel
-
Ring — Right audio channel
-
Sleeve — Ground (shared between channels)
Standard stereo headphones, computer speakers, and most consumer audio devices use TRS. If you have a pair of headphones without a built-in microphone, they're TRS.
TRS can also carry balanced mono audio — used in pro audio applications where one cable carries a single audio signal with positive (tip), negative (ring), and ground (sleeve). This rejects electromagnetic interference much better than unbalanced TS connections, allowing for longer cable runs in studios and stages.
The same physical TRS connector can carry either stereo unbalanced audio OR balanced mono audio depending on the equipment. The plug doesn't know — only the equipment on each end determines what the contacts mean.
TRRS (Tip Ring Ring Sleeve) — Stereo audio + microphone, 4 contacts
TRRS has four contacts:
-
Tip — Left audio
-
First Ring — Right audio
-
Second Ring — Microphone OR ground (depends on standard, see below)
-
Sleeve — Ground OR microphone
TRRS is what you'll find on headsets with built-in microphones, smartphone earbuds, and gaming headphones with combined audio + mic on a single plug.
Here's where it gets confusing.
CTIA vs OMTP — The TRRS standards war
There are TWO different TRRS pinout standards, and they're not compatible:
CTIA (also called AHJ or American) — Used by Apple, modern Android phones, gaming consoles, and most modern computers.
-
Tip: Left audio
-
Ring 1: Right audio
-
Ring 2: Ground
-
Sleeve: Microphone
OMTP (Old Open Mobile Terminal Platform) — Used by older Nokia phones, older Sony Ericsson phones, and some legacy equipment.
-
Tip: Left audio
-
Ring 1: Right audio
-
Ring 2: Microphone
-
Sleeve: Ground
If you plug a CTIA headset into an OMTP device (or vice versa), you'll get audio that sounds quiet, distorted, or has the channels swapped. The microphone usually doesn't work at all.
CTIA is the dominant standard in 2026. If you bought your headphones in the last 10 years, they're almost certainly CTIA.
Why your headset's mic doesn't work on your computer
This is the most common 3.5mm issue. Here's the typical scenario:
You have: A modern smartphone-style headset with a TRRS plug (CTIA standard, audio + mic combined).
You plug it into: A desktop PC with two separate 3.5mm jacks — one green (headphones, TRS) and one pink (microphone, TS).
Result: Audio works (you hear sound through the headphones), but the microphone doesn't function. Why? The PC is treating the 3.5mm jack as a 3-contact TRS port. The microphone signal on the second ring is being read as the wrong contact.
Solution: Use a TRRS splitter adapter that splits a single TRRS connection into two TRS connections — one for the headphones and one for the microphone. Plug the audio into the green port and the mic into the pink port. This adapter costs about $5-10 and is one of the most useful audio accessories you can own.
Common 3.5mm cable types
3.5mm TRS to 3.5mm TRS (stereo audio cable) — The most common type. Used for connecting phones, computers, tablets, or MP3 players to powered speakers, car stereos, or amplifiers.
3.5mm TRS to 2x RCA (stereo breakout cable) — Connects a 3.5mm headphone output to a stereo system with RCA inputs.
3.5mm TRRS splitter — Splits a TRRS plug into two TRS plugs (one audio, one mic) for use with computers that have separate ports.
3.5mm extension cable — Male TRS or TRRS to female TRS or TRRS, used to extend an existing audio cable.
3.5mm to 6.35mm (1/4-inch) adapter — Lets you plug 3.5mm headphones into pro audio gear that uses larger 1/4-inch jacks.
Right-angle 3.5mm cables — The plug bends at 90 degrees, useful for phones in cases or pockets where a straight plug would stick out too far.
Quality matters more than you'd think
Cheap 3.5mm cables are notorious for going bad. The plug is small, takes a lot of mechanical stress, and has tiny solder joints that can fail with repeated bending. Signs of a failing cable include intermittent audio (one channel cutting out as you wiggle the cable), microphone-only failure with the headset working, and visible damage at the strain relief.
Look for cables with a metal-shelled connector instead of all-plastic, a good strain relief that flexes with the cable, oxygen-free copper conductors for better audio quality, and gold-plated contacts for corrosion resistance. The price difference between a $3 cable and a $10 cable is usually visible in build quality.
