Cable Length Limits: How Far Can Your Cable Run?

"How long can this cable be?" is one of the most common questions we get. Every cable type has a maximum length defined by physics — beyond that distance, the signal degrades to the point where it stops working reliably or doesn't work at all. Here's a comprehensive reference guide to maximum cable lengths for every common cable type, plus what to do when you need to go further.

Ethernet (Cat5e, Cat6, Cat6a)

Ethernet has the most generous standard length limit of any common cable. The IEEE 802.3 standard specifies 100 meters (328 feet) as the maximum cable length for all twisted-pair Ethernet (Cat5e through Cat8). This applies to copper Ethernet at any speed up to 10 Gbps.

There are some important caveats:

• Cat6 at 10 Gbps: 55 meters (180 feet) maximum, then drops to 1 Gbps

• Cat6a at 10 Gbps: Full 100 meters

• Cat8 at 25/40 Gbps: Limited to 30 meters

To go beyond 100 meters, you need a network switch or media converter. Fiber optic cable can run kilometers without a repeater. Powered Ethernet extenders can push the distance further over copper but typically reduce speed.

HDMI

This is where things get interesting because HDMI distance depends heavily on the cable type and resolution.

Passive HDMI cable distances:

• 1080p: Reliable up to 50 feet with quality cable (25-30 feet for cheap cables)

• 4K @ 60Hz: Generally limited to 25 feet with quality passive cable

• 8K: Generally limited to 10-15 feet

Active HDMI cables (powered, often with built-in chip):

• 4K @ 60Hz: Up to 50 feet with active copper cables

Active Optical HDMI (AOC) — fiber optic inside:

• 4K HDMI 2.0: Up to 150 feet

• 8K HDMI 2.1: Up to 100 feet

For long HDMI runs (over 25 feet for 4K), Active Optical HDMI cables are the best solution. They use fiber optic strands internally for zero signal loss over distance.

DisplayPort

Passive DisplayPort cables are limited to about 15 feet (4.5 meters) for full performance. Beyond that, signal degradation becomes noticeable.

For longer DisplayPort runs:

• Active DisplayPort cables: Up to 30 feet

• DisplayPort fiber optic cables: Up to 100 meters

• DisplayPort over Cat6/Cat6a (with extender boxes): Up to 100 meters

DisplayPort fiber and extender solutions are common in conference rooms and digital signage applications where short DisplayPort distances aren't sufficient.

USB

USB length limits are surprisingly short due to high-speed signaling requirements.

USB 2.0: 5 meters (16.4 feet) maximum for a single cable. Multiple cables can be daisy-chained through powered hubs to extend further.

USB 3.0/3.1: 3 meters (10 feet) maximum for full 5-10 Gbps performance. Some quality cables work at 5 meters but performance may drop.

USB 3.2 Gen 2x2 (20 Gbps): 1 meter typical maximum.

USB4 / Thunderbolt: 2 meters for passive cables; active USB4 cables can reach 5 meters.

For longer USB runs:

• Active USB extension cables: Add 5 meters per active extension (USB 2.0)

• USB over Cat6 extenders: Up to 100 meters using powered extender boxes

• USB over fiber: Long-distance USB extension over fiber optic cable (specialty applications)

VGA

VGA's analog signal degrades gradually over distance. Quality matters enormously.

Quality VGA cable:

• 15 feet: Up to 1920x1200 with sharp text

• 25 feet: Up to 1920x1080 with acceptable quality

• 50 feet: 1024x768 to 1280x1024 reliable

• 100+ feet: Use a powered VGA extender

For cable runs longer than 50 feet at high resolution, use a VGA-over-Cat5 extender system that converts the analog signal to digital for transmission and back at the other end.

Power cords

Power cord length is limited by safety concerns (voltage drop and heat buildup) more than signal integrity.

18 AWG cord (standard computer/monitor cable):

• Up to 25 feet at full 10A rating

• Beyond 25 feet, step up to 16 AWG

16 AWG cord:

• Up to 50 feet at full 13A rating

14 AWG cord:

• Up to 100 feet at full 15A rating

For power runs longer than these distances, use heavier gauge cables or install a closer outlet. Voltage drop on long thin cords can cause equipment to malfunction or trip its undervoltage protection.

Audio cables (3.5mm, RCA, XLR)

Unbalanced audio (3.5mm, RCA):

• Up to 25 feet for consumer use

• Quality drops noticeably beyond this distance due to noise pickup

Balanced audio (XLR, TRS):

• Up to 100 feet for professional installations

• Up to 1000 feet for low-impedance microphone-level signals (XLR)

The balanced design of XLR cables uses two signal conductors carrying the same audio with opposite polarity, allowing receivers to reject electromagnetic interference picked up along the run. This is why pro audio uses XLR for long runs and consumer audio uses RCA for short ones.

Fiber optic cables

This is where you go when copper just won't reach.

Multi-mode fiber:

• OM3: 300 meters at 10 Gbps

• OM4: 400 meters at 10 Gbps

• OM3 at 40/100 Gbps: 100 meters

Single-mode fiber:

• OS2 standard: 10 kilometers

• OS2 with proper optics: Up to 80 kilometers or more

For any cable run between buildings, across a campus, or over 300 meters indoors, fiber is almost always the right answer.

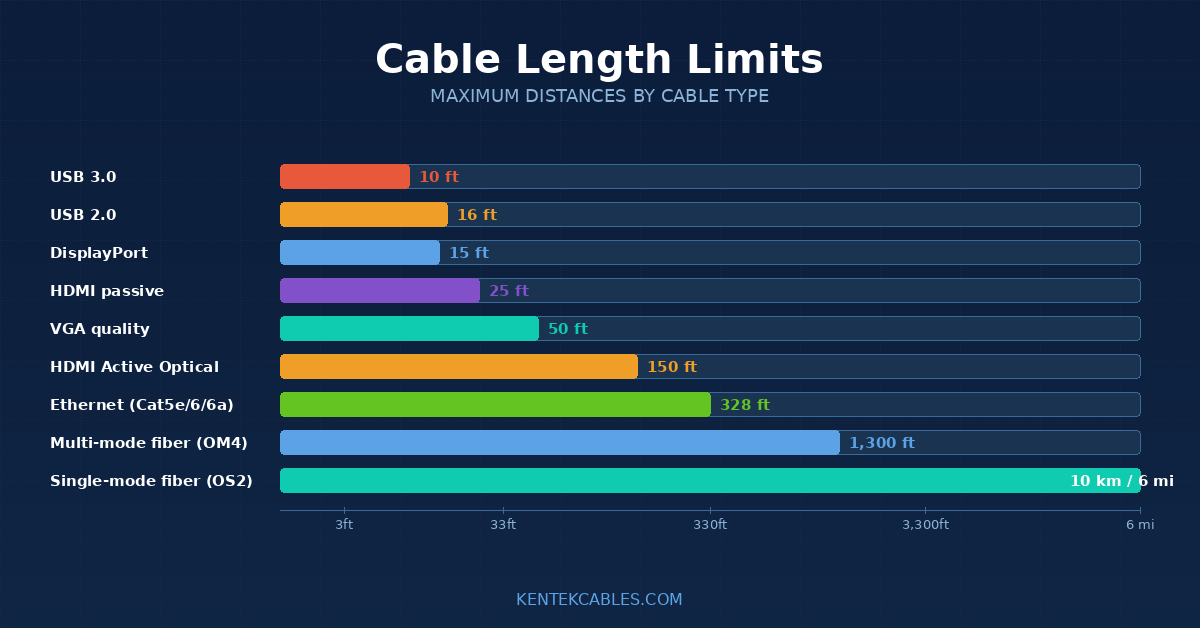

Summary table

At Kentek, we carry cables in every common length, plus active cables and Active Optical solutions for installations that exceed standard length limits. Need a cable longer than what's listed on our site? Reach out — we can often source specific lengths to order.
