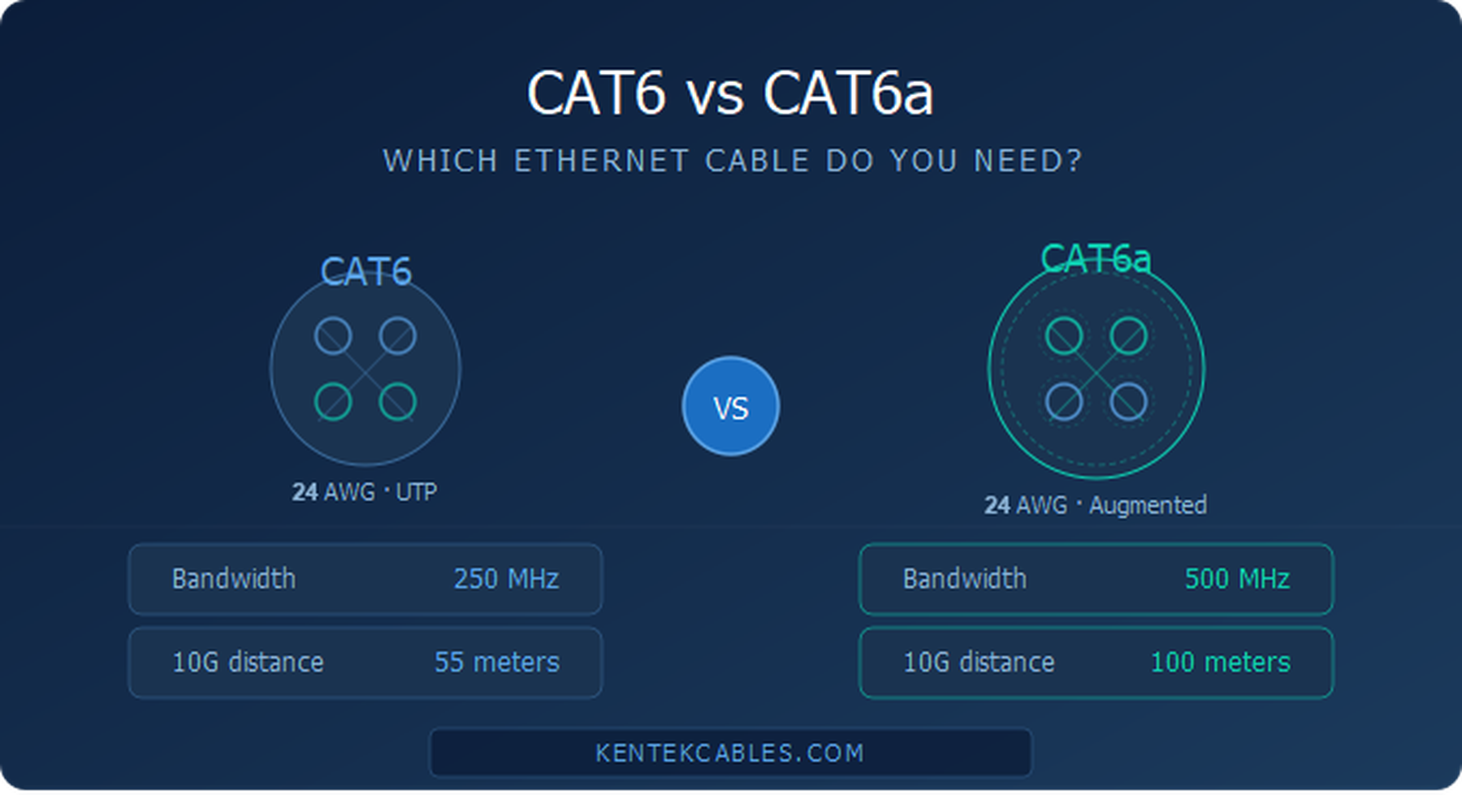

If you're shopping for Ethernet cables and trying to decide between CAT6 and CAT6a, you're not alone. These two cable categories look almost identical, use the same RJ45 connectors, and both support 10 Gigabit speeds — so what's the actual difference, and does it matter for your setup?
The short answer: CAT6 is the better value for most homes and small offices, while CAT6a is the smarter investment for long cable runs, data centers, and future-proof installations. Let's break down why.
Speed and bandwidth
Both CAT6 and CAT6a support 10 Gigabit Ethernet (10 Gbps), but they do it differently.
CAT6 cables operate at 250 MHz bandwidth and reliably deliver 10 Gbps speeds for distances up to about 55 meters (180 feet). Beyond that, the performance drops to 1 Gbps — still fast, but not the full 10G potential.
CAT6a cables operate at 500 MHz — double the bandwidth — and maintain full 10 Gbps speeds across the entire 100-meter (328 feet) maximum Ethernet distance. That extra headroom makes a real difference in larger buildings, commercial installations, and data center environments.
Bottom line: If all your cable runs are under 55 meters (which covers most homes and small offices), CAT6 gives you the same 10G speeds at a lower cost.
Crosstalk and interference
This is where CAT6a truly earns its "augmented" designation. Crosstalk is the electromagnetic interference that happens when signals from one cable bleed into an adjacent cable. There are two types to know about:
Near-End Crosstalk (NEXT) happens between wire pairs inside the same cable. Both CAT6 and CAT6a handle this reasonably well through tighter twist rates and internal separators (splines).
Alien Crosstalk (AXT) happens between neighboring cables when they're bundled together in a conduit or cable tray. This is where CAT6a significantly outperforms CAT6. If you're running dozens of cables through the same pathway — common in commercial buildings and server rooms — CAT6a's superior shielding keeps each cable's signal clean and separate.
For a home network with a handful of cable runs, alien crosstalk is rarely an issue. For an office with 48 cables packed into a single conduit, it can absolutely degrade performance.
Physical differences
CAT6a cables are noticeably thicker and stiffer than CAT6. A typical CAT6 cable has an outer diameter of about 5.5-6mm, while CAT6a runs 7-8mm or more. This has practical implications for installation.
The thicker CAT6a cable is harder to route through tight spaces, requires larger conduit, and takes up more room in cable trays and patch panels. The minimum bend radius is also larger, so you need more space around corners and in junction boxes.
If you're doing an in-wall installation where the cables will be buried for years, the extra effort is worth it. For desk-to-switch patch cables that you'll swap out occasionally, the flexibility of CAT6 is a real advantage.
Shielded vs unshielded
Both CAT6 and CAT6a come in UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair) versions.
UTP is the standard choice for most installations. It's lighter, more flexible, easier to terminate, and doesn't require grounded patch panels or switches.
STP adds a foil or braided shield around the wire pairs to block external electromagnetic interference (EMI). It's recommended for industrial environments, hospitals, or anywhere near heavy electrical equipment.
CAT6a is more commonly available in shielded versions because the environments that need CAT6a (data centers, commercial buildings) are also the environments where shielding provides the most benefit.
Cost comparison
CAT6a cables typically cost 30-50% more than equivalent CAT6 cables. Here's a rough comparison for patch cables:
-
CAT6 patch cable (10 ft): $7-$11
-
CAT6a patch cable (10 ft): $9-$15
For a single cable, the difference is minimal. But for a full office buildout with 50-100 cable runs including bulk cable, connectors, patch panels, and labor, the total cost difference can reach thousands of dollars.
When to choose CAT6
CAT6 is the right choice when your cable runs are under 55 meters, you're wiring a home network or small office, you're buying patch cables for connecting devices to switches or wall jacks, you're working with a tight budget but still want Gigabit or 10G performance, or you don't have heavy cable bundle density (fewer than 20 cables in a single pathway).
When to choose CAT6a
CAT6a makes sense when any cable run exceeds 55 meters, you're doing a new construction in-wall installation designed to last 10-15 years, you're setting up a data center or server room, you're deploying Power over Ethernet (PoE++) devices that draw 60-90 watts, you need to bundle many cables in high-density pathways, or you're wiring a building with significant EMI from industrial or medical equipment.
Can you mix CAT6 and CAT6a?
Yes. Ethernet is backward compatible, and both use standard RJ45 connectors. A common and cost-effective approach is to use CAT6a for permanent in-wall backbone runs (where replacement would be expensive) and CAT6 for shorter patch cables at the desk and rack level.
The network will perform at the level of the lowest-rated component in the chain — so a CAT6 patch cable connected to a CAT6a wall run will operate at CAT6 specifications. But since the patch cable is likely under 5 meters, you'll still get full 10G performance.
Our recommendation
For most buyers, CAT6 UTP patch cables deliver everything you need at the best price point. They support Gigabit speeds at any length and 10G for the runs most people actually have.
If you're planning a structured cabling installation for a new building, office, or data center — or if your cable runs are longer than 55 meters — invest in CAT6a. The extra cost pays for itself in longevity and performance headroom.
At Kentek, we carry both CAT6 and CAT6a Ethernet patch cables in lengths from 6 inches to 100 feet, in UTP and STP shielded options, with gold-plated RJ45 connectors. All of our cables are UL and CSA certified with solid copper conductors.
