If you've ever worked in an environment with multiple computers — a server room, a video editing suite, a multi-platform development setup, or a stock trading desk — you've probably used a KVM switch. The name "KVM" stands for Keyboard, Video, Mouse — three peripherals shared between multiple computers via a single switch.

Here's how KVM switches work, what types exist, and how to choose the right one for your setup.

What is a KVM switch?

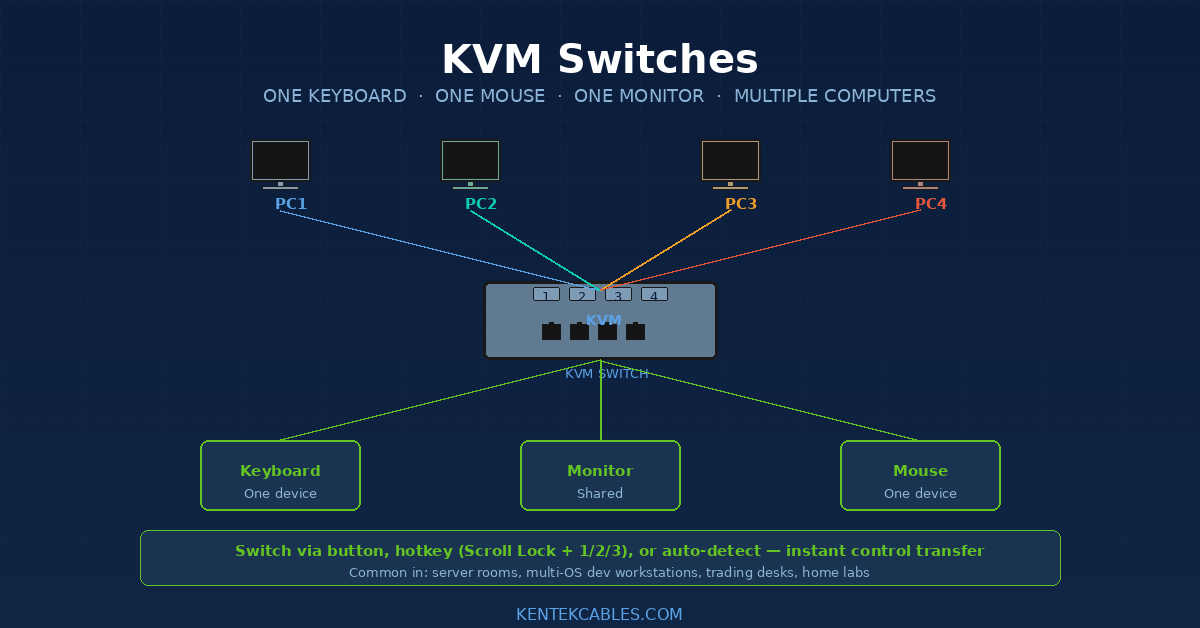

A KVM switch is a hardware device that lets you control multiple computers using a single keyboard, mouse, and monitor (or set of monitors). You press a button or keyboard shortcut to switch between computers, and your keyboard/mouse/display reroute instantly to the selected computer.

Without a KVM: Three computers need three keyboards, three mice, three monitors, and three sets of desk space.

With a KVM: One keyboard, one mouse, one monitor (or set of monitors), one set of desk space — and you switch between three (or more) computers as needed.

This saves space, money, and the cognitive load of using multiple input devices.

Why use a KVM switch?

Server administration: IT pros frequently manage multiple servers. A KVM at the server rack lets one person manage many servers without dedicated peripherals.

Multi-OS development: Developers running Windows, macOS, and Linux concurrently for testing benefit from a single set of peripherals.

Stock/finance trading desks: Traders often run multiple computers for different platforms or redundancy.

Video production: Editors switching between an edit station and a render machine.

Security operations centers (SOCs): Operators monitoring multiple systems.

Home offices: Personal vs work computers sharing the same desk setup.

Home labs: Hobbyists running multiple home server systems.

How KVM switches work

The internal mechanism varies but the principle is the same:

Video signal routing: The switch contains video multiplexers (electronic switches for analog signals) or digital signal processors (for HDMI/DisplayPort) that route the selected computer's video output to the monitor.
USB device emulation: The switch emulates a keyboard and mouse to every connected computer simultaneously. When you press keys or move the mouse, those inputs are routed only to the currently selected computer.
Switching method:

Button: Physical button on the switch
Hotkey: Keyboard shortcut (often Scroll Lock + 1/2/3/etc.)
Auto-detect: Some switches detect mouse movement direction (move mouse off the right edge → switch to next computer)
Software: KVM control software with on-screen menus

Types of KVM switches by video interface

HDMI KVM Switches

The most common type for modern setups.

Supports: HDMI 1.4, 2.0, 2.1
Max resolution: Varies by model (1080p, 4K@30Hz, 4K@60Hz, 4K@120Hz)
HDCP support: Some support HDCP, some bypass it (varies)
EDID emulation: Better KVMs include this to prevent display detection issues

DisplayPort KVM Switches

For high-end displays and multi-monitor setups.

Supports: DisplayPort 1.2, 1.4
Max resolution: Up to 4K@60Hz or higher
Common use: Gaming/workstation setups with high-refresh-rate monitors

USB-C / Thunderbolt KVM Switches

The newest and most versatile type.

Supports: USB-C with DisplayPort Alt Mode
Single cable per computer: Power, video, USB hub all over one cable
Use case: Modern laptop docking with KVM functionality
Premium models: Thunderbolt 4 versions with full bandwidth

DVI KVM Switches

For older equipment.

Supports: DVI-D digital
Max resolution: 1920×1200 single-link, 2560×1600 dual-link
Common in: Older professional installations, server rooms

VGA KVM Switches

For legacy equipment.

Supports: Analog VGA
Max resolution: Typically 1920×1200
Common in: Industrial environments, legacy server rooms

Multi-format KVM Switches

Higher-end switches that accept multiple video formats:

HDMI in, DisplayPort out
VGA + HDMI sources, HDMI output
Mixed input types with single output

KVM switch sizing

2-Port

Smallest practical KVM. Switches between 2 computers.

Typical use: Personal vs work computer, primary vs backup
Cost: $30-100 for basic, $200-300 for premium 4K models

4-Port

The most common configuration.

Typical use: Multi-server admin, traders, home labs
Cost: $60-150 for HDMI, $200-500 for high-resolution/multi-monitor

8-Port and larger

Enterprise applications.

Typical use: Server rooms managing many systems
Cost: $200-500 for HDMI, $500-1500 for high-end with cable management
Often rack-mounted with cable management arms

Multi-monitor KVMs

For setups with 2, 3, or 4 monitors per computer.

Cost: $300-1000+
Key feature: All monitors switch together (or independently in some models)

Wired KVM vs IP-based KVM

Wired KVM (most common):

Cables run from each computer to the KVM unit
Limited to physical cable runs (typically 6-15 feet for HDMI without extenders)
Lower latency
Lower cost

KVM over IP / IP KVM:

Each computer has a small "IP KVM" device
Control via network from anywhere
Used by data centers for remote server management
Higher latency
More expensive
Examples: Raritan, Avocent, Lantronix

For most use cases, wired KVM is the practical choice. IP KVM is for situations where physical access is impossible (overseas data centers, lights-out facilities).

Cable requirements

KVM cables connect each computer to the KVM switch. The number of cables per computer depends on the KVM type.

Standard KVM cable bundles

A typical KVM cable for a single computer includes:

HDMI/DVI/VGA cable for video
USB Type-A cable for keyboard/mouse
3.5mm audio cable for audio (optional)

These are often sold as bundled "KVM cables" with all three wires combined into a single jacket for clean installation.

Length limits

HDMI: 15 feet typically reliable
DisplayPort: 15 feet typically reliable
DVI: 15-25 feet
VGA: 25-50 feet (degrading)
USB: 15 feet without active hubs

For longer runs, KVM extenders or fiber-based KVM systems are needed.

Features to look for

EDID emulation: The KVM emulates the monitor's identification (EDID) to each computer continuously, even when that computer isn't selected. Without EDID emulation, computers might detect no monitor connected and rearrange windows or change resolutions.

Hotkey switching: Keyboard shortcuts to switch computers (Scroll Lock + 1, 2, 3, etc.). Faster than reaching for a button.

USB peripheral pass-through: Beyond just K/V/M, modern KVMs include USB hub ports that switch with the computer. Lets you share USB devices (printers, scanners, webcam) across computers.

Audio support: Some KVMs route audio between computers. Important for multimedia workstations.

Independent USB switching: On premium KVMs, you can keep your keyboard/mouse on computer 1 while routing video and USB hub to computer 2. Useful for monitoring background processes.

Multi-monitor support: Switches that handle 2, 3, or 4 displays per computer.

4K/120Hz support: Critical for gaming or high-refresh-rate work.

Hot-key customization: Define your own switching hotkeys instead of default Scroll Lock combinations.

Auto-scan: Automatic cycling through connected computers at set intervals. Useful for monitoring.

Common problems and solutions

Problem: Mouse cursor lags or jumps when switching.

This is usually USB latency. Solutions:

Use higher-quality KVM (faster USB switching)
Connect mouse to a dedicated USB port (not through a hub)
Update mouse drivers

Problem: Windows rearrange when switching between computers.

This is EDID-related. Solutions:

Use KVM with EDID emulation
Use a consistent resolution across all computers
Some software (DisplayFusion, MonitorEdge) can preserve window positions

Problem: Audio crackles or pops on switch.

Solutions:

Use KVM with dedicated audio support
Connect audio outputs to a separate switcher
Use audio interface with multiple inputs

Problem: Black screen on switching to 4K computer.
