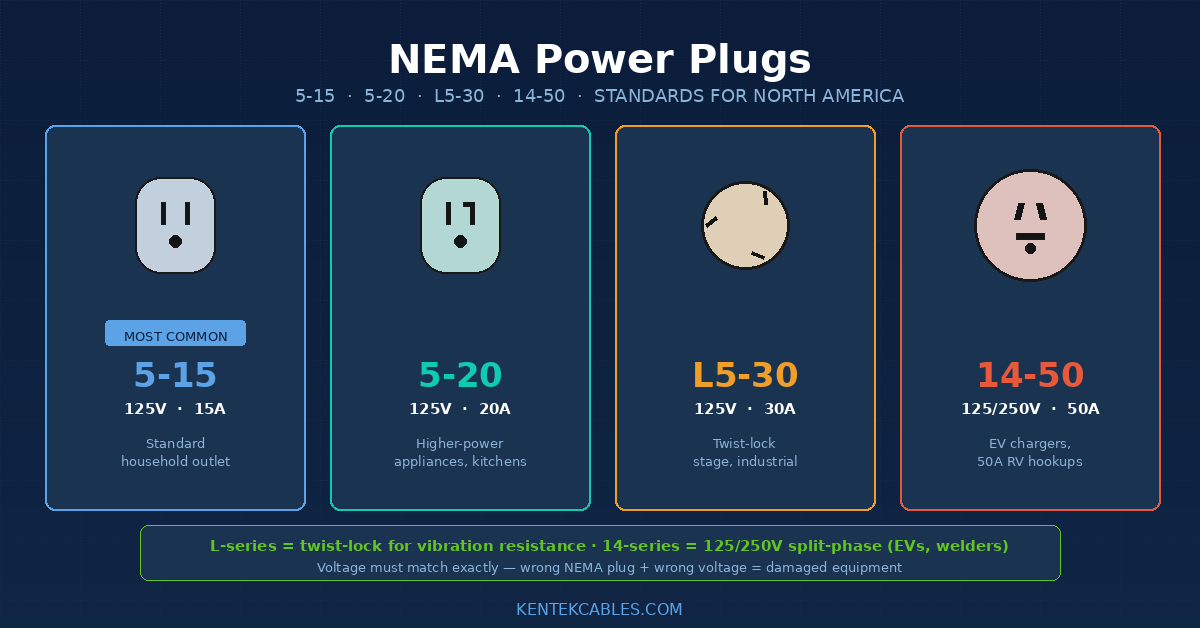

Look at any wall outlet in North America and you're looking at a NEMA receptacle. The standard wall outlet — two flat blades plus a round ground pin — is officially called a NEMA 5-15. But there are dozens of other NEMA configurations for higher voltages, higher currents, and locking applications.
Understanding NEMA plug types is essential for anyone working with industrial equipment, data center power, electric vehicle chargers, generators, RV electrical systems, or any electrical installation beyond basic residential.
What is NEMA?
NEMA (National Electrical Manufacturers Association) is the standards body for electrical equipment in the United States. NEMA defines hundreds of standards including the power plug and receptacle configurations used throughout North America.
The NEMA designation system uses a specific format:
-
Letter prefix (optional) — "L" for locking (twist-lock) connectors
-
Number before the dash — Voltage rating designation
-
Number after the dash — Current/amperage rating
For example:
-
5-15 — 125V, 15A standard household
-
5-20 — 125V, 20A (slightly higher current)
-
L5-30 — 125V locking, 30A
-
6-20 — 250V, 20A
-
L14-30 — 125/250V locking, 30A (split-phase)
-
14-50 — 125/250V, 50A (typical RV/EV)
Standard household (NEMA 5)
The "5" series is 125V single-phase, the standard household voltage in North America.
NEMA 5-15
The universal household outlet. Two parallel flat blades + round ground pin.
-
Voltage: 125V AC
-
Current: 15A continuous, 20A peak
-
Found on: Every residential wall outlet, computers, TVs, small appliances
NEMA 5-20
Looks similar to 5-15 but with one blade rotated 90 degrees (T-shaped slot).
-
Voltage: 125V AC
-
Current: 20A continuous
-
Found on: Higher-power appliances (toaster ovens, window air conditioners), commercial kitchens, some workshop tools
-
Compatibility: A 5-15 plug fits into a 5-20 outlet, but a 5-20 plug won't fit into a 5-15 outlet (different blade configuration)
NEMA L5-15 and L5-30
Locking ("twist-lock") versions for industrial applications.
-
L5-15 — 125V, 15A, twist-lock
-
L5-30 — 125V, 30A, twist-lock
-
Found on: Stage lighting, temporary power, construction sites, audio equipment
The twist-lock design prevents accidental disconnection from vibration or pulling — critical for stage performances, construction, and any high-vibration environment.
240V single-phase (NEMA 6)
The "6" series is 250V single-phase, common for high-power industrial equipment.
NEMA 6-15 and 6-20
-
6-15 — 250V, 15A
-
6-20 — 250V, 20A
-
Distinguished from 5-15/5-20: Horizontal blades instead of vertical
Found on:
-
Large window air conditioners
-
Commercial refrigeration
-
Server room equipment
-
Industrial machinery (smaller)
-
Some commercial cooking equipment
NEMA L6-20 and L6-30
Locking versions of 6-series receptacles.
-
L6-20 — 250V locking, 20A
-
L6-30 — 250V locking, 30A
-
Found on: Industrial equipment, server racks (especially data center power distribution)
L6-20 and L6-30 are extremely common in data centers because they provide more power per circuit than standard 5-15 outlets while remaining single-phase (simpler to manage than 3-phase power).
125/250V split-phase (NEMA 14)
The "14" series is 125/250V split-phase — meaning the outlet has both 125V (between hot and neutral) and 250V (between two hots) available.
NEMA 14-30 and 14-50
-
14-30 — 125/250V, 30A
-
14-50 — 125/250V, 50A
Found on:
-
Electric vehicle chargers (14-50 is the de facto Tesla and Level 2 EV charger standard)
-
RV electrical hookups (50A campsites use 14-50)
-
Welders
-
Large industrial equipment
-
Some electric dryers (older homes)
NEMA L14-20, L14-30
Locking versions for industrial split-phase applications.
Found on:
-
Stage and event power distribution
-
Generators (most home generators output L14-30)
-
Industrial machinery
-
Some data center applications
3-phase configurations
For commercial and industrial applications needing 3-phase power:
NEMA L15 series (250V 3-phase)
-
L15-20 — 250V 3-phase, 20A
-
L15-30 — 250V 3-phase, 30A
NEMA L21 series (208Y/120V 3-phase)
-
L21-20 — 208Y/120V, 20A, 5-wire (3 phases + neutral + ground)
-
L21-30 — 208Y/120V, 30A
Found on:
-
Large commercial HVAC
-
Industrial motors
-
Data center 3-phase PDUs (Power Distribution Units)
-
Manufacturing equipment
-
Some commercial kitchens
Common confusion: 5-15 vs 5-20
The NEMA 5-15 vs 5-20 distinction trips up many DIYers:
5-15 outlet:
-
Two parallel vertical slots
-
Round ground hole below
-
Accepts 5-15 plugs (most common)
5-20 outlet:
-
One vertical slot + one T-shaped slot (horizontal extension)
-
Round ground hole below
-
Accepts both 5-15 plugs AND 5-20 plugs
The T-slot: The horizontal extension on the 5-20 outlet allows the perpendicular blade of a 5-20 plug. A 5-15 plug fits because its straight blade enters the vertical portion of the T-slot.
Bottom line: If you have a 5-20 outlet, you can plug in either type. If you have a 5-15 outlet, you can only plug in 5-15 devices.
IEC C13/C14 / C19/C20 — The other half
Most computer equipment and data center hardware uses IEC connectors on the equipment side, with NEMA on the power source side. The "kettle cord" or "computer power cable" typically has:
-
NEMA 5-15P on one end (plugs into wall)
-
IEC C13 on the other end (plugs into computer/equipment)
For higher-power equipment:
-
NEMA L6-20P to IEC C19 for 20A devices (servers, large UPS)
-
NEMA L6-30P to IEC C19 for 30A devices
Understanding both standards is essential for power infrastructure work.
Twist-Lock locking mechanism
NEMA "L" series receptacles use a twist-lock design:
-
Insert plug straight into receptacle
-
Rotate 1/4 turn clockwise to lock
-
Connectors lock together until manually rotated counterclockwise to release
Benefits:
-
Cannot accidentally pull out
-
Resistant to vibration
-
Higher current ratings than friction-fit equivalents
-
Color-coded by configuration
Drawbacks:
-
Requires two-step operation
-
More expensive than standard receptacles
-
Cannot use with standard equipment without adapter
When to use which NEMA standard
Residential / small office:
-
5-15 for everything standard
-
5-20 for higher-current devices (modern kitchens, workshop tools)
Commercial / light industrial:
-
5-20 standard, 6-20 for 240V equipment
-
L5-30 / L6-30 for portable equipment
Data center:
-
L6-20 / L6-30 most common for server power
-
Some installations use L21-20/L21-30 for 3-phase
Industrial:
-
L6-30 / L14-30 for portable equipment
-
L21 series for 3-phase distribution
Stage / events:
-
L5-20 / L5-30 for portable lighting
-
L14-30 for generator distribution
-
Cam-Lok for very high power (not NEMA — separate standard)
Electric vehicle charging:
-
5-15 for Level 1 (slow) charging
-
14-50 for Level 2 (faster) charging at home
-
Commercial EV stations use different connectors entirely
RV:
-
5-15 / 5-20 for 15/20A campsites
-
TT-30 (a different NEMA standard) for 30A
-
14-50 for 50A campsites
Color coding (informal)
Many manufacturers use color coding for easy identification:
-
Yellow — Heavy-duty commercial 5-15/5-20
-
Orange — Isolated ground for sensitive electronics
-
Black — Standard residential
-
Twist-lock connectors — Often distinct shapes/colors by configuration
Adapters (use with caution)
Adapters exist to convert between NEMA standards but should be used cautiously:
Safe adapters:
-
5-15 to 5-20 receptacle (allows 5-15 plug in 5-20 outlet — already fits anyway)
-
Plug adapters for international travel
Unsafe adapters:
-
6-20P plug to 5-15 receptacle — Connects 240V device to 120V outlet — WILL damage equipment
-
14-50P plug to 5-15 receptacle — Same dangerous mismatch
-
Removing the ground pin to fit ungrounded outlets — Removes safety ground
The rule: Voltage must match. Current rating can be higher in the outlet than the plug (a 5-20 outlet can power a 5-15 device safely) but not the other way around (a 5-15 outlet can't safely power a 5-20 device for extended periods).
