A patch panel is the unsung hero of professional network installations. Walk into any properly designed server room or network closet and you'll see a rack with patch panels at the top, switches below, and clean color-coded patch cables connecting everything. This isn't just for looks — patch panels make networks easier to install, troubleshoot, modify, and maintain.
Here's everything you need to know about patch panels and how to use them for clean, professional network installations.
What is a patch panel?
A patch panel is a passive piece of equipment with multiple network ports on the front and termination points (usually punch-down blocks) on the back. Each port on the front connects to one termination point on the back through internal wiring.
The purpose: separate the permanent cable installation from the day-to-day equipment connections.
In a typical setup:
-
Permanent wall runs (Cat6 cables going to each office/desk drop) terminate on the BACK of the patch panel via punch-down
-
Short flexible patch cables connect the FRONT of the patch panel to your network switch
-
Equipment in offices plugs into wall jacks, which connect through the wall to the corresponding patch panel port
If you need to change which switch port serves a particular wall drop, you simply move the patch cable on the FRONT of the patch panel. The permanent wiring through walls never gets disturbed.
Why use patch panels?
Protect permanent cabling from wear — Punch-down terminations are designed to be permanent (rated for 200+ insertion cycles per IEC standards). RJ45 connectors on patch cables are designed for repeated insertion (5000+ cycles). By using patch panels, you stress the patch cables (cheap, replaceable) instead of the permanent wiring.
Easy reconfiguration — Moving a workstation from VLAN A to VLAN B is just moving a patch cable from one switch port to another. No need to access wall jacks or run new cable.
Cleaner installations — All your permanent cables terminate neatly in one location instead of running directly to switch ports. Easier to label, troubleshoot, and maintain.
Better testing — You can disconnect just the patch cable to test if a problem is in the permanent wiring or the patch connection.
Future-proofing — Need to upgrade your switch? Just unplug the patch cables from the old switch and connect them to the new one. The permanent wiring stays untouched.

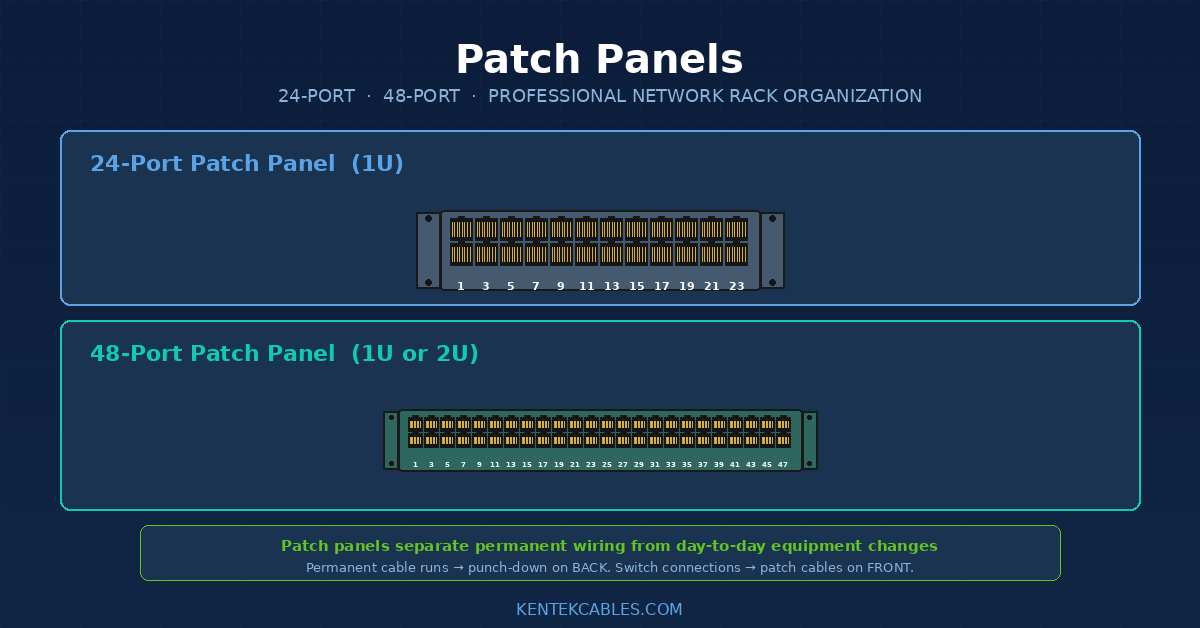

Port count
Patch panels come in various port counts, matching the rack unit (RU) size:
12-port — Compact, takes 1/2 RU or 1 RU. Good for small offices, branch locations, or home labs.
24-port — The most common size. Takes 1 RU. Standard for small-to-medium offices, comfortable for 24 network drops.
48-port — Takes 1 RU (high density) or 2 RU (cleaner cable management). Standard for medium-to-large offices and data centers.
96-port and larger — Very high density for data centers. Takes 2 RU.
Sizing rule of thumb: Plan for ~20-25% growth. If you have 18 wall drops, use a 24-port patch panel. If you have 40 drops, use a 48-port.
Types of patch panels
Punch-down patch panel
The traditional type. The back has 110-style or Krone punch-down blocks for each port. You strip each cable's pairs, punch them down using a punch-down tool, and the connection is made.
Pros:
-
Most reliable, professional installation
-
Lower cost per port than alternatives
-
Long-lasting and serviceable
Cons:
-
Requires punch-down tool and skill
-
Time-consuming to install
-
Mistakes require re-punching
Keystone patch panel (modular)
A blank patch panel with snap-in slots for individual keystone jacks. You terminate each cable on its own keystone jack (the same kind used in wall plates), then snap the jacks into the patch panel slots.
Pros:
-
Mix and match — can have Cat6, Cat6a, fiber, and coax in the same panel
-
Each port replaceable individually
-
Familiar to anyone who's installed keystone wall jacks
-
Easier to add ports gradually
Cons:
-
More expensive per port than punch-down
-
Slightly less neat than dedicated punch-down panels
Feedthrough patch panel
Has RJ45 jacks on both sides. You make a regular Ethernet patch cable, and it plugs into the back of the panel instead of being punched down.
Pros:
-
No special tools required
-
Easy to reconfigure or replace cables
-
Fast installation
Cons:
-
Less professional appearance
-
Cables can be pulled out accidentally from the back
-
Generally only used in temporary or DIY installations
Loaded vs unloaded patch panels
Loaded (preloaded) panels come with all jacks already installed and tested. You just punch down or plug into them.
Unloaded (blank) panels are just the metal frame with empty slots. You add keystone jacks as needed.
For most installations, loaded patch panels are easier and faster. Unloaded panels are better if you need to mix jack types or want to upgrade jacks over time.
Category matters
The patch panel's category rating must match your cable:
-
Cat5e panel — For Cat5e installations, supports 1 Gbps
-
Cat6 panel — For Cat6 installations, supports 10 Gbps at short distances
-
Cat6a panel — For Cat6a installations, supports 10 Gbps at full 100m
-
Cat7/Cat8 panels — Specialty applications
Don't mix categories. A Cat6a cable terminated on a Cat5e patch panel becomes a Cat5e link — the panel is the bottleneck. Match the panel rating to the cable category.
Cable management accessories
For a clean rack installation, you'll also want:
Horizontal cable manager — A 1U or 2U unit that sits between equipment in the rack. Has rings, ducts, or D-rings to organize patch cables.
Vertical cable manager — Attaches to the sides of the rack, allowing cables to route cleanly between rack positions.
Cable rings / D-rings — Standalone organizers for routing groups of cables.
Velcro straps — For bundling cables. Use Velcro instead of zip ties for patch cables — they're easier to reconfigure later.
Labels — Every cable should be labeled at both ends with its destination. P-Touch label maker labels work great.
A clean installation: order of operations
For a professional-looking installation:
Step 1: Mount the rack — Floor rack, wall rack, or rack cabinet, depending on space and security needs.
Step 2: Pull all cables — Run all Cat6/Cat6a cables from drop locations to the rack location. Leave 5-10 feet of service loop at the rack end.
Step 3: Install the patch panel(s) — Mount in the rack at a comfortable height (eye level for the technician).
Step 4: Terminate cables — Punch down each cable to its assigned port. Verify cable lengths allow for service loops without excess slack.
Step 5: Test every port — Use a cable tester. Document any failures and fix immediately.
Step 6: Label every port — Label the patch panel ports with their destinations (e.g., "WS01-A" for Workstation 01 jack A).
Step 7: Install horizontal cable managers — Between patch panels and switches for clean cable routing.
Step 8: Install the switch — Below the patch panel.
Step 9: Run patch cables — From patch panel to switch ports. Use consistent length patch cables (1-3 feet typical). Color-code by function if desired.
Step 10: Document everything — Create a spreadsheet showing which patch panel port maps to which wall drop and which switch port.
Color coding conventions
Common patch cable color schemes:
-
Blue: General-purpose LAN
-
Red: Server / critical infrastructure
-
Yellow: Management / out-of-band
-
Green: Production / VLAN
-
White: Spare / unused
-
Orange: Fiber / WAN uplinks
Pick a scheme and document it. Consistent color coding makes troubleshooting much faster.
Common patch panel mistakes
Mistake 1: No cable service loops — Pulling cables too tight at the patch panel means they can't be moved or re-terminated. Always leave at least 3 feet of service loop.
Mistake 2: Skipping labels — Six months from now, you won't remember which cable goes where. Label everything.
Mistake 3: Mismatched categories — Cat6a cable + Cat5e panel = Cat5e network. Match categories throughout the chain.
Mistake 4: Cheap patch cables — Don't use $0.99 patch cables in a rack. They tangle, lose contact, and look terrible. Spend $2-3 per cable for quality.
Mistake 5: Power cables routed with data — Run AC power down one side of the rack and data down the other. Crossing at right angles is fine; parallel runs cause interference.
Mistake 6: No cable management between switches and patch panels — A 24-port patch panel feeding a 24-port switch needs proper management between them. Without it, cables tangle and pull on connectors.
Wall mount vs floor rack
Wall-mount rack — For installations with limited floor space and lower equipment density. Holds 4-12 RU of equipment. Common in small offices, retail locations, and home labs.
Floor-standing rack — Standard 19-inch rack, typically 24-48 RU tall. Required for larger installations or installations with significant equipment density.
Enclosed rack cabinet — Floor-standing with locking doors and side panels. Used for security-sensitive installations or environments where dust and tampering are concerns.
For 1-2 patch panels and a single switch, a wall-mount rack is usually sufficient. For full network infrastructure, server, and storage equipment, you'll want a floor rack.
