Choosing the wrong power cord gauge can mean anything from a tripped circuit breaker to a genuine fire hazard. AWG (American Wire Gauge) tells you how thick the copper conductors are inside the cord — and that thickness directly determines how much electrical current the cord can safely carry.
Here's a straightforward guide to choosing the right AWG for your equipment.
What does AWG mean?
AWG stands for American Wire Gauge. It's a standardized system for measuring wire thickness, and here's the counterintuitive part: the lower the AWG number, the thicker the wire.
So an 18 AWG cord has thinner conductors than a 14 AWG cord. Thicker wire carries more current with less resistance and less heat buildup, which is why higher-amperage equipment requires lower AWG ratings.

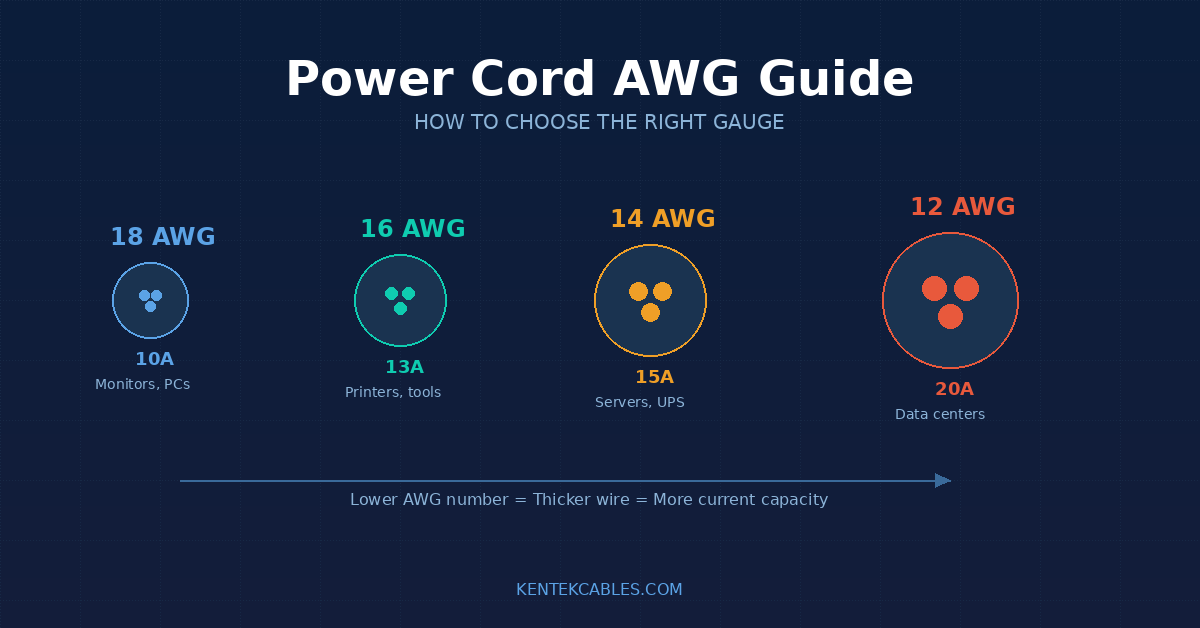

Common power cord gauges
18 AWG (10A rated) — The standard for most consumer electronics. Computers, monitors, printers, small appliances, gaming consoles, and TVs typically draw well under 10 amps. If your device came with a standard thin power cord from the manufacturer, it was almost certainly 18 AWG. This is the most common gauge for NEMA 5-15P to IEC C13 power cords.
16 AWG (13A rated) — The mid-range option for equipment that draws more power. Workstations with powerful graphics cards, small space heaters, laser printers, and some power tools benefit from 16 AWG cords. This gauge is also common for power extension cords and Y-splitter cables where you're splitting the load between two devices.
14 AWG (15A rated) — Heavy-duty grade for high-draw equipment. Servers, UPS systems, industrial equipment, large monitors, and professional audio amplifiers often need 14 AWG cords. The thicker wire handles sustained high-current loads without excessive heat buildup. These cords are typically SJT (Service Junior Thermoplastic) rated for durability.
12 AWG (20A rated) — Data center and industrial grade. Server racks, PDUs (Power Distribution Units), and high-current networking equipment use 12 AWG cords, often with NEMA 5-20P or IEC C19/C20 connectors. These cords are noticeably heavier and less flexible, which is fine since they're typically installed once and left in place.
How to determine what you need
Step 1: Check your device. Look at the label on the back of your equipment or in the manual. It will list the amperage (A) or wattage (W). If it lists watts, divide by your voltage (120V in the US) to get amps. For example: 600W / 120V = 5 amps.
Step 2: Match to the right gauge. Choose a cord rated for at least the amperage your device draws. It's always safe to go one gauge thicker than the minimum (using 16 AWG when 18 AWG would technically work), but never go thinner.
Step 3: Consider the length. Longer cords experience more voltage drop. For runs over 10 feet, consider stepping up one AWG to compensate. A 25-foot 18 AWG cord loses enough voltage to affect sensitive equipment — use 16 AWG or 14 AWG for long runs.
Connector types
Power cords aren't just about gauge — the connectors matter too.
NEMA 5-15P is the standard three-prong plug that goes into a US wall outlet. It handles up to 15A at 125V.
IEC C13 is the three-pin female connector that plugs into most computers, monitors, and network equipment. It's rated for 15A.
IEC C14 is the male version of C13, typically found on UPS systems and PDUs as an inlet.
IEC C19/C20 are the larger rectangular connectors used for high-current equipment (servers, PDUs). They're rated for 16-20A and paired with 12 AWG or 14 AWG cords.
NEMA 5-15R is the standard three-prong female receptacle used on extension cords and Y-splitters.
Safety certifications
Always use power cords that are UL listed and CSA certified. These certifications mean the cord has been independently tested and verified to safely carry its rated current. At Kentek, all of our power cords carry UL, CSA, and RoHS certifications — you're getting a cord that meets the same safety standards used by equipment manufacturers.
