Power over Ethernet (PoE): The Complete Guide to PoE, PoE+, PoE++, and PoE++ Type 4

Power over Ethernet (PoE) is one of the quiet revolutions in modern networking. The idea is simple: send DC power down the same Ethernet cable that carries data, eliminating the need for a separate power outlet at each device. The result is simpler installations, cleaner cable management, and devices placed wherever you need them — not just where outlets exist.

PoE has evolved through four major IEEE standards over the past 20+ years, each delivering more power for more demanding devices. Here's everything you need to know in 2026.

How PoE works

A PoE-capable network connection has three components:

PSE (Power Sourcing Equipment): The device providing power. Usually a PoE switch or PoE injector.

PD (Powered Device): The device receiving power. Cameras, access points, phones, lights, etc.

Powered cable: A standard Ethernet cable (Cat5e or better) that carries both data and DC power.

When you plug a powered device into a PoE port:

1. The PSE first checks if the device is PoE-capable (sends a test signal)

2. If PoE-capable, the PSE negotiates the power level needed

3. Power flows over the unused conductor pairs (or all four pairs in newer standards)

4. The PD operates from the supplied power

If the PSE detects a non-PoE device (a regular computer or printer), it doesn't send power, preventing equipment damage.

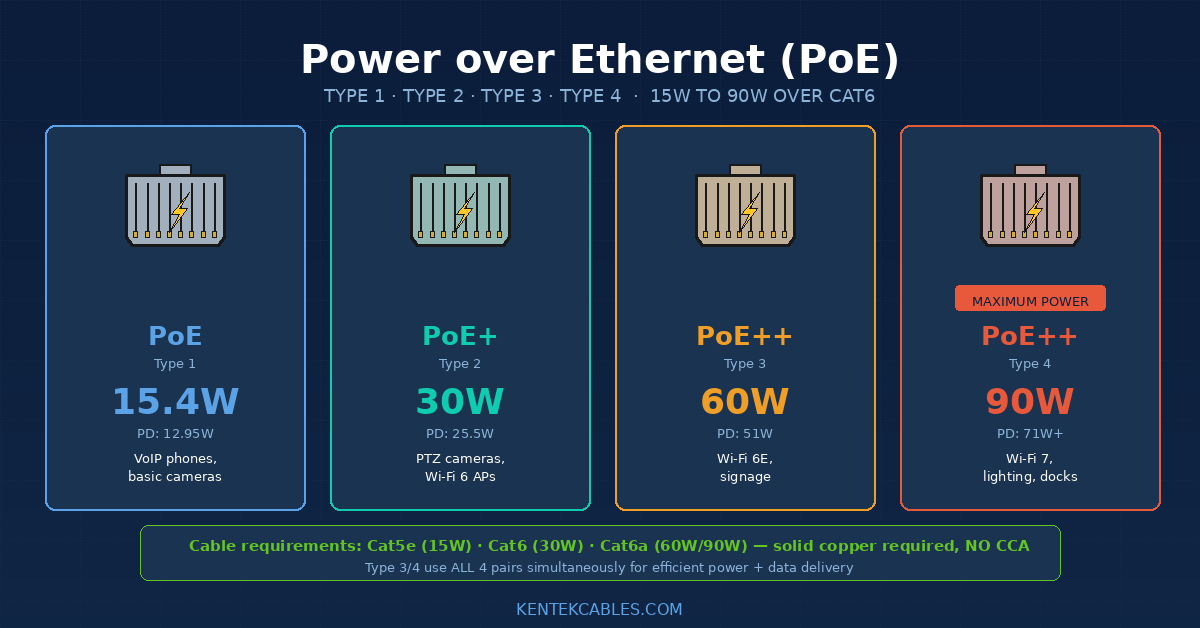

The four PoE standards

PoE Type 1 (IEEE 802.3af) — The Original

Released in 2003. The original PoE standard.

• Power per port at PSE: 15.4W maximum

• Power available at PD: 12.95W (after cable losses)

• Voltage: 44-57V DC

• Pairs used: 2 pairs (data pairs OR spare pairs, depending on implementation)

• Cable requirement: Cat5e minimum

What this powers:

• VoIP phones (standard desk phones)

• Basic IP security cameras (fixed view)

• Wireless access points (older Wi-Fi 4/5 single-band)

• Network sensors

PoE Type 1 is still widely deployed. Many older office buildings have 802.3af switches feeding desk phones and conference room equipment.

PoE Type 2 / PoE+ (IEEE 802.3at) — The Expansion

Released in 2009.

• Power per port at PSE: 30W maximum

• Power available at PD: 25.5W

• Voltage: 50-57V DC

• Pairs used: 2 pairs

• Cable requirement: Cat5e minimum, Cat6 recommended

What this powers:

• PTZ (Pan-Tilt-Zoom) security cameras

• Dual-band Wi-Fi 6 access points

• Video phones with displays

• Door access controllers

• Modern IP cameras with IR illuminators

The 30W PoE+ standard is the current minimum for most professional installations. Almost every business-class switch sold today supports at least PoE+ on most ports.

PoE Type 3 / PoE++ (IEEE 802.3bt) — High Power

Released in 2018.

• Power per port at PSE: 60W maximum (4-pair PoE Type 3)

• Power available at PD: 51W

• Voltage: 50-57V DC

• Pairs used: All 4 pairs (much more efficient than 2-pair)

• Cable requirement: Cat6 minimum, Cat6a recommended

What this powers:

• Wi-Fi 6E/Wi-Fi 7 access points (which need extra power for tri-band radios)

• Large PTZ cameras with built-in heaters/coolers

• Digital signage screens (smaller sizes)

• Network video recorders

• LED lighting fixtures

• POS terminals with displays

PoE Type 3 was a major upgrade — by using all 4 pairs simultaneously, it dramatically reduced cable heat compared to 2-pair PoE+ delivering similar power.

PoE Type 4 / PoE++ Type 4 / Hi-PoE (IEEE 802.3bt) — Maximum Power

Released alongside Type 3 in 2018.

• Power per port at PSE: 90-100W maximum

• Power available at PD: 71.3W minimum, up to 90W

• Voltage: 52-57V DC

• Pairs used: All 4 pairs

• Cable requirement: Cat6a strongly recommended; Cat6 acceptable with limitations

What this powers:

• Wi-Fi 7 access points with maximum features

• Large outdoor surveillance cameras with heaters

• Mid-size digital signage displays (up to 24-32")

• IP-connected LED lighting (commercial fixtures)

• Laptop docking stations

• Smaller monitors and displays

• Building automation controllers

• Wireless mesh nodes

Type 4 is the highest standardized PoE. Some vendors push beyond this with proprietary "PoE++ Plus" or "Ultra PoE" up to 120W+, but these aren't IEEE-standardized.

Standards comparison

Cable requirements

Cable choice matters more than people realize for PoE:

Cat5e:

• Acceptable for PoE Type 1 (15W)

• Acceptable for PoE+ Type 2 (30W) at short distances

• NOT suitable for Type 3/4 (60W/90W) — too much heat buildup

• CCA (copper-clad aluminum) wire FAILS for PoE — only use solid copper

Cat6:

• Excellent for Type 1 and Type 2

• Acceptable for Type 3 (60W) at short to medium distances

• Marginal for Type 4 (90W) — not recommended for long runs

• The thicker conductors (23 AWG vs Cat5e's 24 AWG) handle higher current better

Cat6a:

• Excellent for all PoE types

• Required for reliable Type 4 (90W) installations

• Better heat dissipation due to thicker construction

• Recommended for any new PoE installation

Critical: NEVER use copper-clad aluminum (CCA) Ethernet cable for PoE. CCA cables have higher resistance than solid copper, causing dangerous heat buildup. Building codes increasingly prohibit CCA for PoE installations. Solid copper Cat6 or Cat6a is required.

How to deliver PoE

Option 1: PoE Switch

A network switch with PoE built in. Each port can deliver PoE to connected devices.

Pros:

• Simplest setup — single device handles networking and power

• Centralized management

• Power budget shared across ports (e.g., a 48-port switch might have 700W total budget)

Cons:

• More expensive than non-PoE switches

• Higher power consumption (the switch itself uses more power)

• Must replace entire switch to upgrade PoE capabilities

Typical sizing:

• Small office: 8-16 port PoE switch, 150-250W budget

• Medium office: 24-port PoE switch, 400-500W budget

• Enterprise: 48-port PoE switch, 700-1000W budget

Option 2: PoE Injector

A small device that adds PoE to an existing non-PoE network port.

How it works: Network cable comes from your existing switch → into the injector → out to the PoE device. The injector adds DC power to the cable.

Pros:

• Cheap (single injector $15-50)

• Add PoE to non-PoE switches

• Easy to install for a single device

• Multiple types available (single-port, multi-port, indoor, outdoor)

Cons:

• One per device — doesn't scale well

• Adds clutter near each PoE device

• Requires AC power outlet near the injector

Use cases:

• Adding one outdoor camera to a network with a non-PoE switch

• Powering a single access point in a remote location

• Temporary installations or testing

Option 3: Midspan Power Distribution

Like injectors but for many ports at once. A 24-port "midspan" injector sits between your switch and devices, adding PoE to multiple connections.

Pros:

• More cost-effective than buying a new PoE switch for existing installations

• Replaces an entire bank of PoE injectors

Cons:

• Doubles the equipment in your rack

• More complex installation

Midspan injectors are common in installations where the existing switch is fine but PoE needs to be added.

Distance and power loss

Like any DC power transmission, PoE loses power over distance. Maximum cable run is 100m (328ft) for PoE — the same as standard Ethernet.

For a 90W (Type 4) device at the maximum 100m distance:

• PSE outputs 90W

• Cable losses: ~20W

• PD receives ~70W

For shorter runs, more power reaches the device. For longer runs (you'd need a switch in between as a relay), cumulative losses mean PoE Type 4 at 200m would deliver only marginal power.

Practical advice: Keep PoE runs as short as possible. Position PoE switches close to high-power devices when possible.

Voltage drops and PoE Class

Devices identify themselves to the PSE by drawing specific current patterns. This negotiation establishes the device's PoE "class":

• Class 0 — Up to 15.4W (unspecified)

• Class 1 — Up to 4W (low-power devices)

• Class 2 — Up to 7W

• Class 3 — Up to 15.4W (standard PoE)

• Class 4 — Up to 30W (PoE+)

• Class 5 — Up to 45W

• Class 6 — Up to 60W (Type 3)

• Class 7 — Up to 75W

• Class 8 — Up to 90W (Type 4)

This classification helps PoE switches budget power across all connected devices.

Common PoE applications by industry

Office buildings:

• VoIP phones at every desk

• Wireless access points throughout floors

• Conference room cameras and microphones

• Door access controllers

• Digital signage in lobbies

Retail:

• POS terminals

• Customer information displays

• Security cameras

• Wi-Fi for shoppers

• LED lighting (newer installations)

Healthcare:

• Patient monitoring stations

• Nurse call systems

• Wi-Fi access points for medical devices

• Security cameras

• Asset tracking sensors

Education:

• Classroom AV equipment

• Campus-wide Wi-Fi

• Security cameras

• Building automation

Industrial:

• Factory floor sensors

• Quality control cameras

• Environmental monitors

• Industrial Wi-Fi

Outdoor:

• Parking lot cameras

• Smart streetlights

• Public Wi-Fi

• License plate readers

Buying tips

When choosing PoE equipment:

For switches, calculate your power budget:

• Add up all devices you'll power

• Add 20-30% headroom for future expansion

• Choose a switch with that total budget

• Verify per-port maximums are sufficient for your highest-power devices

For new installations:

• Cat6a cable as the standard

• Solid copper conductors only

• Properly sized PoE switch (don't undersize to save money)

• Plan for future device upgrades

For adding to existing networks:

• PoE injectors for 1-5 devices

• Midspan injectors for 8+ devices

• New PoE switch for 20+ devices
