You've probably done it at least once: looked at the back of a router or wall plate, grabbed what you thought was an Ethernet cable, plugged it in, and... nothing worked. Or maybe the other way around — plugged a phone cable into a network port. The connectors look similar at a glance, and they fit into similar-looking jacks. But they're not the same.
Here's why phone cables (RJ11) and Ethernet cables (RJ45) are different, and how to tell them apart instantly.

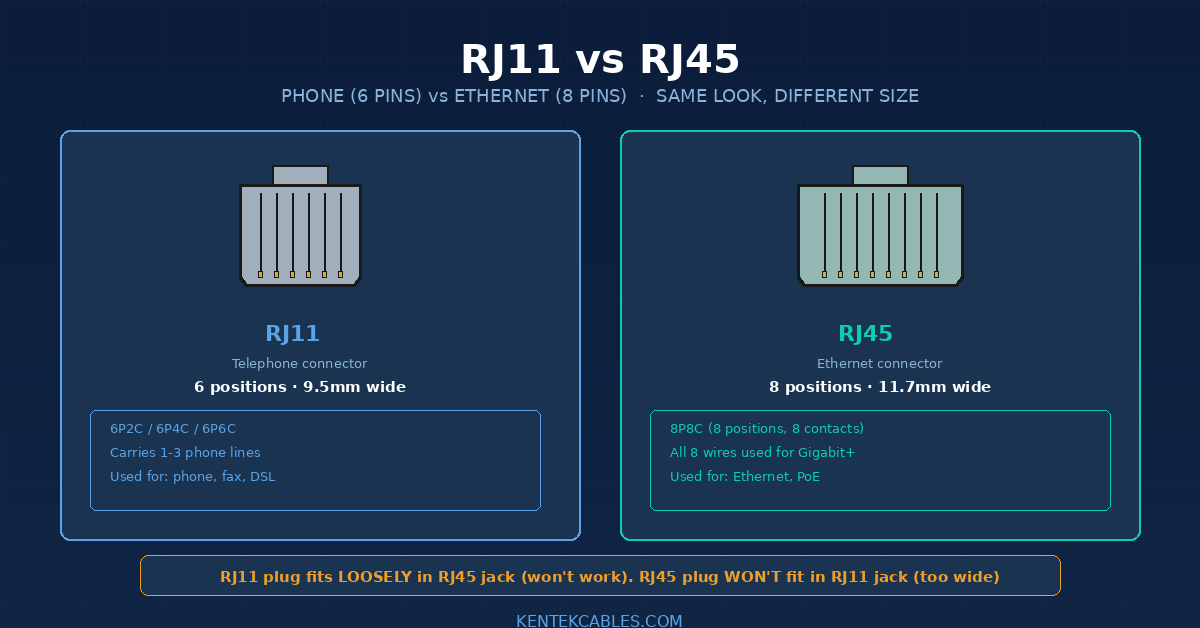

The size difference
The simplest way to distinguish RJ11 from RJ45: size.
RJ11 connector is about 9.5mm wide — a narrower connector with 6 positions but typically only 2 or 4 conductors wired. Sometimes called "6P4C" (6 positions, 4 contacts) or "6P2C" (6 positions, 2 contacts).
RJ45 connector is about 11.7mm wide — noticeably wider with 8 positions and 8 conductors. Always referred to as "8P8C" (8 positions, 8 contacts).
If you hold them side by side, the difference is obvious. The RJ45 is clearly larger. If you only have one in hand, count the gold pins inside the clear plastic — 6 positions for RJ11, 8 positions for RJ45.
What plugs into what?
RJ11 plugs:
-
Fit into RJ11 jacks (telephone wall outlets, phone splitters)
-
Fit physically into RJ45 jacks (loose, but they go in) — DON'T DO THIS
-
Carry 1-2 phone lines (depending on pin configuration)
RJ45 plugs:
-
Fit into RJ45 jacks (Ethernet ports on computers, routers, switches)
-
Do NOT fit into RJ11 jacks (too wide)
-
Carry Ethernet network signals
What happens if you plug them wrong?
RJ11 plug into RJ45 jack: Physically fits but only contacts the middle 4 pins. The signal goes to wrong pins, and the connection won't work. In rare cases, can damage the equipment if the phone line carries ring voltage (~48V) and bridges into Ethernet signal pins.
RJ45 plug into RJ11 jack: Won't fit. The RJ45 is too wide to insert into an RJ11 jack — physical mechanical incompatibility prevents this mistake.
The "RJ" prefix and what it actually means
This is where things get confusing. "RJ" stands for "Registered Jack" and is technically a wiring/usage specification from the old US telephone system, NOT the physical connector itself.
Strict technical accuracy:
-
RJ11 specifically means a 6-position connector with one phone line wired (pins 3 and 4)
-
RJ14 means the same connector with two phone lines wired
-
RJ25 means the same connector with three phone lines wired
-
RJ12 is sometimes used for 6P6C (all 6 contacts wired) used in keystroke controllers and similar
In practice, almost everyone uses "RJ11" to refer to ANY 6-position telephone connector regardless of how many pins are wired. The technical purists may correct you, but in everyday use, "RJ11" means "phone connector."
Same with RJ45 — strictly speaking, "RJ45" is one specific wiring scheme for the 8P8C connector. But everyone just calls the 8P8C connector "RJ45" regardless of how it's wired. Ethernet uses 8P8C connectors, technically called "8P8C" in standards documents, but universally called "RJ45" in conversation.
Pinouts
RJ11 (typical phone line):
-
Pins 3 and 4 (center two) carry tip and ring for line 1
-
Pins 2 and 5 carry tip and ring for line 2 (if RJ14)
-
Pins 1 and 6 carry tip and ring for line 3 (if RJ25)
RJ45 (Ethernet T568B - most common):
-
Pin 1: Orange/White (TX+)
-
Pin 2: Orange (TX-)
-
Pin 3: Green/White (RX+)
-
Pin 4: Blue
-
Pin 5: Blue/White
-
Pin 6: Green (RX-)
-
Pin 7: Brown/White
-
Pin 8: Brown
For Gigabit Ethernet, ALL 8 wires are used. For older 10/100 Ethernet, only pairs 2 and 3 (the orange and green pairs) carry data — the others are unused.
Cable types underneath
RJ11 cables typically use:
-
2-conductor flat cable for single phone line (silver-satin or beige)
-
4-conductor flat cable for two phone lines
RJ45 Ethernet cables use:
-
8-conductor twisted pair cable in CAT5e, CAT6, CAT6a, or CAT7 specifications
The twisted-pair construction of Ethernet cable is crucial — the twists cancel electromagnetic interference and enable the high-speed signaling that Ethernet requires. Phone wire's flat ribbon construction doesn't have this and can't support modern data rates.
Common applications
RJ11 (phone) connections:
-
Traditional landline phones to wall jack
-
Fax machines
-
DSL modems (DSL uses phone line)
-
POTS (Plain Old Telephone Service) lines
-
Some alarm systems
-
Older modems
RJ45 (Ethernet) connections:
-
Computer to network switch/router
-
Modem to router
-
Network printers
-
IP phones (VoIP)
-
IP security cameras
-
Smart TVs and game consoles (wired)
-
PoE-powered devices
Modern relevance
In 2026, RJ11 phone cables are becoming less common as landline phones decline. Most homes now have only cable or fiber-based phone service (which uses RJ45 internally) or no landline at all. But you'll still find RJ11 in:
-
Office buildings with traditional phone systems
-
DSL internet service (uses RJ11 to wall jack, then converts to Ethernet)
-
Fax machines (still required in healthcare, legal, government)
-
Alarm systems with phone-line monitoring
-
Hotels and older apartment buildings
RJ45 Ethernet is now near-universal for any wired data connection.
RJ45 to RJ11 adapters
These exist and have specific limited uses:
RJ11 to RJ45 adapter — Allows you to use an RJ45 patch panel or wall jack for telephone wiring. The phone signal uses 4 of the 8 pins.
RJ45 to RJ11 splitter — Splits an RJ45 jack into both phone and Ethernet using different pin pairs. Sometimes used in older office buildings with combined data/voice cabling.
These are specialty items for specific wiring situations — most users don't need them.
