SATA (Serial ATA) replaced the old, ribbon-style PATA (IDE) cables in the early 2000s and has been the dominant interface for connecting hard drives, SSDs, and optical drives ever since. Even with NVMe taking over for high-performance SSDs, SATA remains the standard for mass storage — every desktop motherboard ships with SATA ports, and billions of SATA drives are in use worldwide.
If you've ever opened a desktop PC to add a hard drive or SSD, you've handled SATA cables. Here's what those L-shaped connectors actually mean.

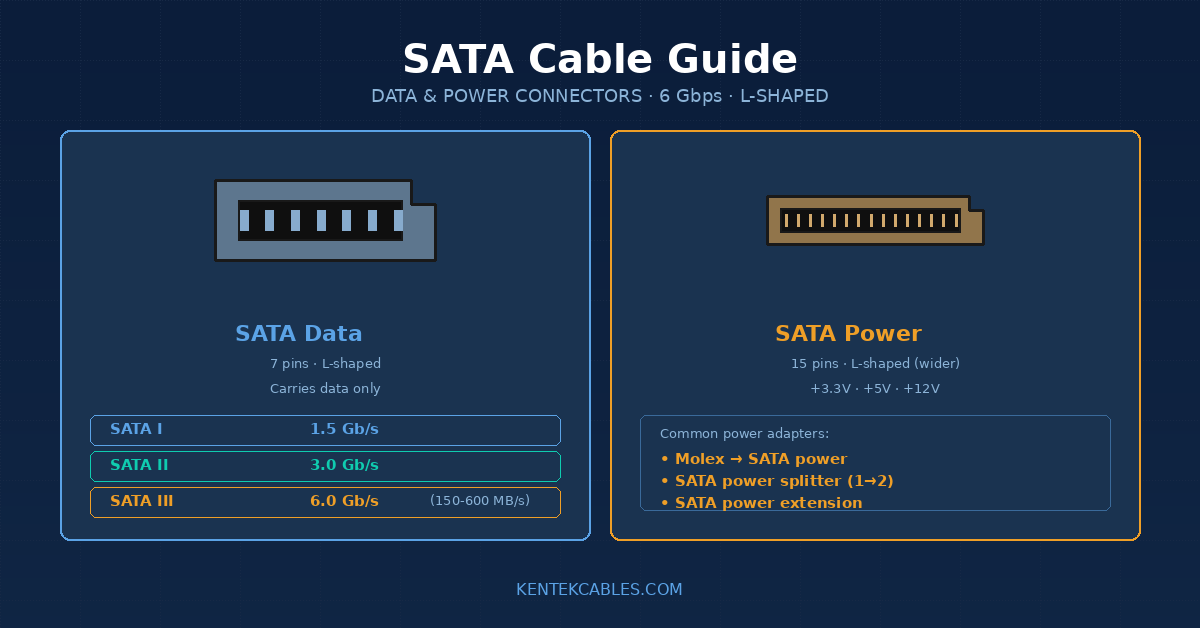

SATA data cables vs SATA power cables
A SATA storage device needs two cables: one for data and one for power.
SATA data cable uses a slim, 7-pin connector at each end. The connector is L-shaped (one side has a notch making it asymmetric) so it only fits one way. The cable transmits data between the storage device and your motherboard's SATA controller.
SATA power cable uses a 15-pin connector. It's wider than the data connector and is also L-shaped to prevent reverse insertion. The power cable supplies +3.3V, +5V, and +12V from the power supply to the drive.
Both connectors are designed for low insertion force — they push in easily and have small latches that hold them in place. Some cables include a metal locking clip for extra security in mobile or vibration-prone environments.
SATA generations and speeds
The SATA specification has gone through three major revisions, each doubling the maximum data transfer speed.
SATA I (SATA 1.5 Gb/s) — Introduced in 2003 with a raw bandwidth of 1.5 gigabits per second, providing about 150 MB/s of usable throughput. This was a huge improvement over PATA's 133 MB/s and helped popularize Serial ATA. Today, SATA I is essentially obsolete in new equipment but you may encounter it in older systems.
SATA II (SATA 3.0 Gb/s) — Released in 2004 with 3 Gb/s raw bandwidth (about 300 MB/s). This was the standard for hard drives throughout the late 2000s. SATA II is still common in older desktops and many enterprise environments.
SATA III (SATA 6.0 Gb/s) — Introduced in 2009, doubled bandwidth again to 6 Gb/s (about 600 MB/s). This is the current SATA standard for desktops, laptops, and most external drive enclosures. Every modern SATA SSD is SATA III.
Important: SATA cable revisions are physically and electrically backward and forward compatible. A SATA III cable works fine with SATA I and II devices and vice versa. The only difference between cables of different generations is the level of testing and shielding — higher-rated cables are validated for higher signal speeds. In practice, almost all SATA cables sold today are rated for SATA III speeds.
How to identify cable quality
Not all SATA cables are equal. Cheap cables can cause intermittent boot failures, drive disconnections, and data corruption — issues that are notoriously difficult to diagnose because they look like drive problems.
Look for these quality indicators:
Locking connectors — Metal clips on the connector housing that lock into the drive's port. Standard non-locking connectors can work loose from vibration in tower cases.
Sleeved or thick jacket — A braided sleeve or thicker outer jacket protects the wire pairs from physical damage during installation.
SATA III certification — The label or printed marking on the cable should state "SATA 6.0 Gb/s" or "SATA III." This indicates the cable has been tested at full SATA III speeds.
Right-angle connectors — Available with the L-bend pointing different directions to fit tight spaces and avoid bending the cable too sharply where it enters the drive.
Cable length
Maximum SATA cable length is 1 meter (about 3.3 feet) per the SATA specification. In practice, cables longer than this can work but increase the risk of signal integrity issues, especially with SATA III speeds. For internal drive connections, the standard 18-inch (45cm) cable handles virtually all desktop installations.
External SATA (eSATA) cables can run up to 2 meters but use a different connector designed for repeated insertion cycles. eSATA was popular for external drive enclosures in the late 2000s but has been largely superseded by USB 3.0/3.1 for external storage.
SATA power cable variants
Modern PSUs typically include several SATA power connectors on a single cable, often 3-5 connectors per cable. If you need additional SATA power connectors, you can use:
4-pin Molex to SATA power adapter — Converts an unused legacy 4-pin Molex connector from your PSU into a SATA power connector. Useful for older PSUs with limited SATA power.
SATA power splitter — Splits one SATA power connector into two or more, allowing you to connect multiple drives to a single PSU SATA cable. Just be mindful of total power draw.
SATA power extension — Extends an existing SATA power connection for installations where the cable doesn't quite reach.
SATA cable troubleshooting
If you're having storage problems — drives disappearing, slow performance, BIOS not detecting drives, or random reboots when reading from the drive — try these steps:
-
Reseat the cable. SATA connectors can work themselves loose, especially in cases without latching connectors.
-
Try a different cable. Cheap SATA cables fail surprisingly often. Swapping the cable is a quick test.
-
Try a different SATA port. Some motherboards have SATA ports that share bandwidth with M.2 slots. If you've installed an M.2 SSD, certain SATA ports may be disabled.
-
Check the power cable. A loose SATA power connector can cause the same symptoms as a bad data cable.
At Kentek, we carry SATA III cables in straight, right-angle, and locking variants, plus SATA power splitters, extensions, and Molex-to-SATA adapters. All cables are SATA 6.0 Gb/s rated.
