If you've ever walked through a TV studio, sports broadcast truck, concert venue, or professional video production setup, you've seen them: thick black coaxial cables with bayonet-locking BNC connectors. These are SDI cables — the broadcast industry's preferred video transmission standard for over 30 years.

While HDMI dominates consumer electronics, SDI rules professional video. Here's why broadcast pros use SDI, how it compares to HDMI, and what cable you need for your production.

What is SDI?

SDI (Serial Digital Interface) is a digital video transmission standard developed in the late 1980s and standardized by SMPTE (the Society of Motion Picture and Television Engineers). It carries uncompressed digital video, embedded audio, and ancillary data over a single coaxial cable using BNC connectors.

Key characteristics:

  • Digital signal (despite using coaxial cable like analog)

  • BNC connectors with bayonet locking

  • 75Ω impedance (same as cable TV / RG-6)

  • Long cable runs (up to 100+ meters for HD)

  • No HDCP (unlike HDMI)

  • Embedded audio (up to 16 channels)

SDI vs HDMI

The professional video industry chose SDI over HDMI for several practical reasons:

Cable length:

  • HDMI: Practical limit ~25-50 feet (longer with active cables)

  • SDI: 100+ meters at HD resolutions

Connector reliability:

  • HDMI: Friction-fit, can pull out under tension

  • SDI: BNC locks in place with a quarter-turn twist

Cable durability:

  • HDMI: Internal wires can break from repeated coiling

  • SDI: Standard coax construction, very robust

Signal integrity:

  • HDMI: TMDS digital signaling with handshake requirements

  • SDI: Self-clocking digital, no handshake needed

Power requirements:

  • HDMI: Source provides power for cables

  • SDI: Pure passive — no power management

HDCP/Copy protection:

  • HDMI: HDCP causes constant handshake issues

  • SDI: No HDCP — works reliably in professional environments

Audio:

  • HDMI: Multi-channel audio embedded

  • SDI: Up to 16 channels of embedded audio

Cost (long runs):

  • HDMI: Active cables for long runs are expensive

  • SDI: Standard coax cable is cheap

For broadcast applications where reliability is critical, the choice is clear.

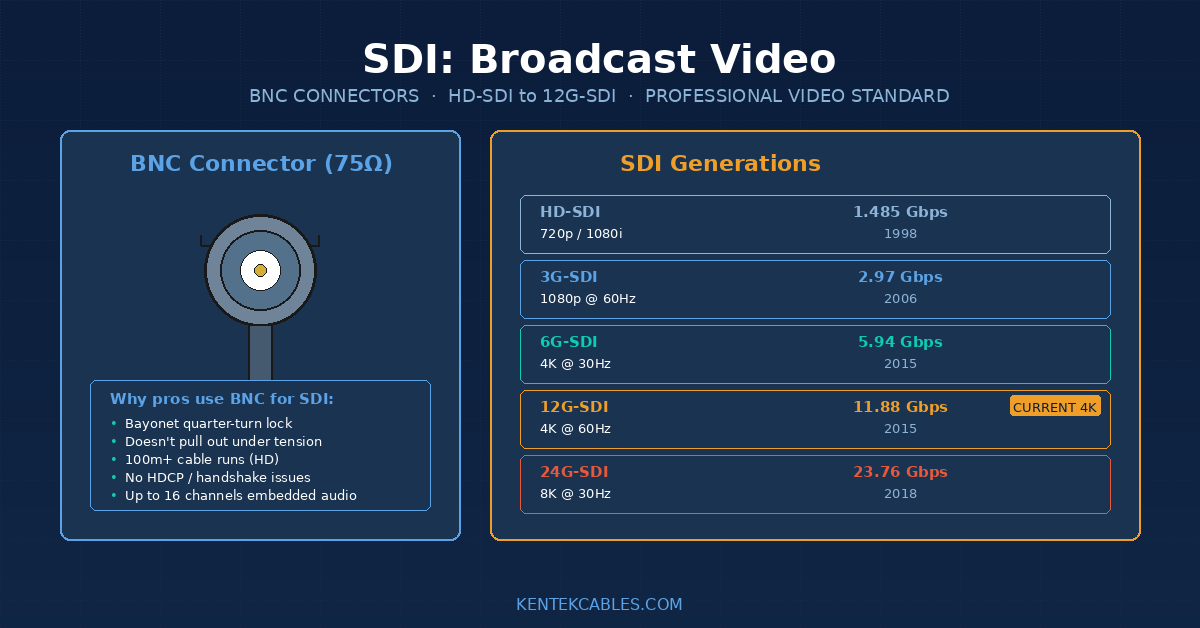

SDI standards by resolution

SDI has evolved through several versions, each supporting higher resolutions:

SD-SDI (270 Mbps) — Standard Definition

The original SDI standard (SMPTE 259M, 1989).

  • Resolution: 480i / 576i (Standard Definition)

  • Bandwidth: 270 Mbps

  • Use: Legacy broadcast equipment, archival systems

HD-SDI (1.485 Gbps) — High Definition

SMPTE 292M, 1998.

  • Resolution: 720p / 1080i

  • Bandwidth: 1.485 Gbps

  • Maximum cable run: ~100m with Belden 1694A or equivalent

3G-SDI (2.97 Gbps) — Full HD

SMPTE 424M, 2006.

  • Resolution: 1080p @ 60Hz

  • Bandwidth: 2.97 Gbps

  • Maximum cable run: ~80m with quality cable

  • Most common in current HD broadcast workflows

6G-SDI (5.94 Gbps) — 4K30

SMPTE ST 2081, 2015.

  • Resolution: 4K (UHD) @ 30Hz

  • Bandwidth: 5.94 Gbps

  • Maximum cable run: ~50m

12G-SDI (11.88 Gbps) — 4K60

SMPTE ST 2082, 2015.

  • Resolution: 4K (UHD) @ 60Hz

  • Bandwidth: 11.88 Gbps

  • Maximum cable run: ~40-50m with premium cable

24G-SDI (23.76 Gbps) — 8K30

SMPTE ST 2083, 2018.

  • Resolution: 8K @ 30Hz

  • Bandwidth: 23.76 Gbps

  • Maximum cable run: ~20-25m

Quad-link SDI for 4K/8K

Before single-link 12G-SDI became common, 4K was transmitted as four 3G-SDI cables in parallel (quad-link). Each of the four cables carried 1/4 of the 4K image. Still used in some installations to leverage existing 3G-SDI infrastructure.

BNC connectors for SDI

SDI uses BNC connectors with bayonet locking. These come in two impedance ratings:

75Ω BNC — Required for SDI. The connector is matched to the 75Ω coaxial cable impedance for signal integrity.

50Ω BNC — Used for ham radio and RF applications. Looks identical but has different internal geometry. Using 50Ω BNC on SDI cable causes signal reflections and signal loss.

Visual difference: Difficult to tell apart at a glance. Look for impedance marking on quality connectors. When in doubt, buy from reputable SDI cable manufacturers.

SDI cable specifications

Not all coaxial cable is suitable for SDI. Look for:

Industry-standard cables:

  • Belden 1694A — De facto standard for HD and 3G-SDI

  • Belden 4694R — For 12G-SDI applications

  • Canare LV-77S — Japanese equivalent, very popular in Asian broadcast

Key specifications:

  • Impedance: 75Ω (±3Ω)

  • Solid copper center conductor (not copper-clad steel)

  • Foam dielectric for low loss

  • Quad-shielded construction

  • PVC or LSZH jacket depending on installation

Cable diameter matters:

  • RG-59 sized cable: Smaller, more flexible. Use for short runs and patch cables. Limited to lower frequencies.

  • RG-6 sized cable (Belden 1694A): Standard for fixed installations. Excellent for HD through 12G-SDI.

  • RG-11 sized cable: Larger conductor for very long runs (100m+). Less flexible.

SDI cable construction

A quality SDI cable consists of:

  1. Solid copper center conductor — Carries the digital signal

  2. Foam polyethylene dielectric — Maintains 75Ω impedance with low signal loss

  3. Aluminum foil shield — First shield layer

  4. Copper braid shield — Second shield layer (sometimes additional foil + braid for quad shielding)

  5. Drain wire — Provides reliable ground termination

  6. Outer jacket — PVC, LSZH (Low Smoke Zero Halogen), or other depending on application

The quad-shielded construction prevents EMI from affecting the digital signal and prevents the SDI signal from interfering with other equipment.

Common applications

Television studios:

  • Camera-to-control room runs

  • Studio camera chains

  • Production switchers

  • Master control routing

Live broadcast:

  • Sports broadcasting trucks

  • Concert venue video

  • Convention/conference production

  • ENG (Electronic News Gathering)

Post-production:

  • Editing suite displays

  • Color grading monitors

  • Reference monitors

  • VTR/DDR connections (though dying out)

Live events:

  • Stage video walls

  • IMAG (Image Magnification) screens

  • Multi-camera shoots

  • Concert visuals

Houses of worship:

  • Sanctuary video systems

  • Multi-campus streaming

  • Recording for broadcast

Corporate AV:

  • Boardroom video systems

  • Training facility cameras

  • Auditorium production

  • Live streaming setups

SDI to HDMI conversion

Many production workflows need to bridge SDI and HDMI signals:

SDI to HDMI converter:

  • Converts SDI output to HDMI for consumer displays

  • Useful for monitoring or distributing SDI to non-professional displays

  • Common in remote production setups

HDMI to SDI converter:

  • Converts HDMI output (laptops, cameras, gaming consoles) to SDI

  • Useful for sending non-SDI sources into a broadcast workflow

  • Common for streaming setups and gaming broadcasts

These converters are usually small "dongle" sized devices that plug into the source and have a BNC output for SDI or HDMI port for HDMI.

Buying tips

For most production needs:

  • Belden 1694A or equivalent for fixed installations

  • 3G-SDI rated as the minimum (handles 1080p60)

  • 12G-SDI rated if working in 4K

  • Quality BNC connectors — gold or silver plated contacts

  • Quad shielded construction

Cable length guidelines:

  • 3-6ft: Camera-to-camera patch, short jumpers

  • 10-25ft: Camera to mixing desk

  • 50ft: Camera positions in mid-sized venues

  • 100ft+: Stadium broadcasts, large studio runs

Avoid:

  • Cables advertised as just "BNC video cable" without SDI rating

  • 50Ω BNC connectors on SDI cable

  • Copper-clad steel center conductor (only solid copper)

At Kentek, we carry coaxial cables in RG-6 and RG-11 specifications suitable for SDI applications, with quality BNC connectors and proper 75Ω impedance.
