If you've ever looked at the back of an enterprise network switch, you've seen those little metal cages with cryptic markings — SFP, SFP+, QSFP, QSFP28, OSFP. These are transceiver slots, and the modules that go in them are how modern networks send data over fiber optic and high-speed copper cables.
For data center engineers, network administrators, and anyone deploying enterprise networking gear, understanding SFP transceivers is essential. Here's a complete breakdown.
What is an SFP transceiver?
A Small Form-factor Pluggable (SFP) transceiver is a hot-swappable module that plugs into a network switch, router, or network interface card. It contains the electronics needed to convert electrical signals to optical (or vice versa for fiber), or to drive copper twisted-pair signals at high speeds.
The transceiver design lets a single network port support multiple cable types and distances — you just swap out the module instead of buying a different switch. Need to use multimode fiber for a short run? Plug in a multimode SFP. Need single-mode fiber for a long run? Swap in a single-mode SFP. The switch port is the same.
This modular approach has made SFP-based networking the standard for enterprise infrastructure since the early 2000s.

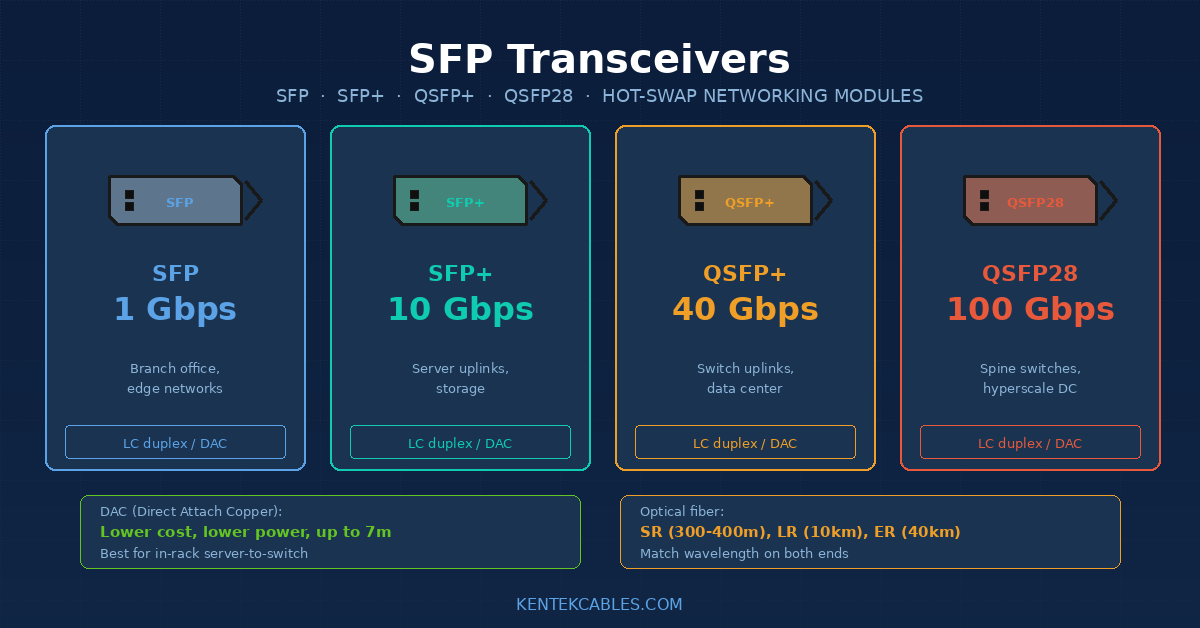

SFP family generations
SFP (1G) — The original. 1 Gbps speed. Released around 2001. Connects to LC duplex fiber connectors (most common) or RJ45 copper for 1000BASE-T applications. Still widely used in branch offices, edge networks, and any application where 1 Gbps is sufficient.
SFP+ (10G) — 10 Gbps. Released around 2006. Same physical form factor as SFP, but supports 10x the bandwidth. Most modern enterprise switches have SFP+ slots for server connections, storage networks, and uplinks.
SFP28 (25G) — 25 Gbps per lane. Released around 2014. Same form factor as SFP/SFP+ but using more advanced electronics. Common in data center server connections.
QSFP (4G/4x1G) — "Quad" SFP, four channels of 1 Gbps each. Mostly historical now.
QSFP+ (40G) — 4x10G, totaling 40 Gbps. Same physical size as QSFP but using SFP+ electronics. Common in data center switch uplinks.
QSFP28 (100G) — 4x25G, totaling 100 Gbps. The current standard for data center spine/leaf switches and high-bandwidth uplinks.
QSFP56 (200G) — 4x50G, 200 Gbps. Used in modern data center applications.
QSFP-DD (400G) — Double-density QSFP with 8 channels of 50G or 100G. The current high-end for hyperscale data centers.
OSFP (400G/800G) — "Octal" SFP, 8 channels. Slightly larger than QSFP-DD. The format being adopted for 400G and 800G in newer data center deployments.
Physical form factors at a glance
SFP/SFP+/SFP28 — Small rectangular module about 56mm long, 14mm wide. Cage on the switch is single-port wide.
QSFP/QSFP+/QSFP28 — Larger module, about 72mm long, 19mm wide. Cage is wider on the switch.
QSFP-DD — Same width as QSFP but slightly deeper to accommodate the additional electrical lanes. Backwards compatible cages sometimes accept QSFP modules.
OSFP — Slightly larger than QSFP-DD, includes built-in heatsink for better thermal management at high speeds.
Connector types and reach
Every transceiver has a specific connector type and supported cable type/distance. Here are the most common options:
SFP/SFP+ optical with LC duplex connectors:
-
SR (Short Reach): 850nm wavelength, OM3/OM4 multimode fiber, up to 300-400m
-
LR (Long Reach): 1310nm, OS2 single-mode fiber, up to 10km
-
ER (Extended Reach): Single-mode fiber, up to 40km
-
ZR (Long ZR): Single-mode fiber, up to 80km
SFP+ copper:
-
10GBASE-T: RJ45 connector, Cat6a or Cat7 cable, up to 100m for 10 Gbps
Direct Attach Copper (DAC) cables:
-
Pre-terminated cables with SFP+/QSFP+ connectors molded onto each end
-
Passive DAC: Up to 7m, lower cost than fiber
-
Active DAC: Up to 15m using built-in signal amplifiers
-
Used for in-rack server-to-switch connections
Active Optical Cables (AOC):
-
Like DAC but with fiber optic strands inside
-
Up to 100m
-
More expensive than DAC but lighter and more flexible
-
Common for server-to-switch connections in larger racks
How to choose a transceiver
Match the speed: A 10G switch port needs an SFP+ transceiver, not an SFP (1G). Putting a 1G transceiver in a 10G port works (drops to 1G speed); putting a 10G in a 1G port doesn't work.
Match the connector type: LC duplex for fiber is the most common, but verify your fiber patch panels and cables match.
Match the wavelength: Both ends of a fiber link must use the same wavelength. SR (850nm) talks to SR. LR (1310nm) talks to LR. Mixing wavelengths doesn't work.
Match the distance: Don't use ER (40km) for a 10m server connection — it'll overdrive the receiver and may cause errors. Don't use SR for a 5km link — it won't reach. Match the transceiver's reach to the actual cable distance.
Vendor compatibility: Some switch vendors (Cisco notably) check transceiver vendor codes and may issue warnings about "unsupported" third-party transceivers. Cheaper "compatible" transceivers from third parties work but technically aren't supported by the switch vendor. For mission-critical networks, use vendor-certified transceivers.
Direct Attach Copper (DAC) vs fiber
For short connections within a single rack or adjacent racks, DAC cables are typically the better choice:
-
Lower cost — DAC is cheaper than two transceivers + a fiber patch cable
-
Lower latency — Slightly faster than fiber due to shorter electrical path
-
Lower power — DAC modules use much less power than fiber transceivers
-
Simpler — Single cable instead of cable + 2 transceivers
For longer connections (across the room, between buildings), fiber is required because DAC tops out at 7-15 meters.
Common configurations
Server to top-of-rack switch: SFP+ DAC cable (3-5m) or 10GBASE-T copper SFP+
Switch-to-switch in same room: OM4 multimode fiber with SR transceivers (up to 400m)
Building-to-building campus: OS2 single-mode fiber with LR transceivers (up to 10km)
Data center spine connections: QSFP28 100G with multimode SR4 or single-mode LR4
