USB-C is the most versatile connector ever standardized — and "Alt Mode" is what makes that versatility possible. It's the reason a single USB-C cable can connect your laptop to a 4K monitor (DisplayPort), an HDMI TV, a Thunderbolt dock, or charge your phone — sometimes all from the same physical port.
But Alt Mode is also one of the most confusing aspects of USB-C. Not every USB-C port supports every Alt Mode, and not every USB-C cable can carry every type of signal. Here's how it actually works.
What is Alt Mode?

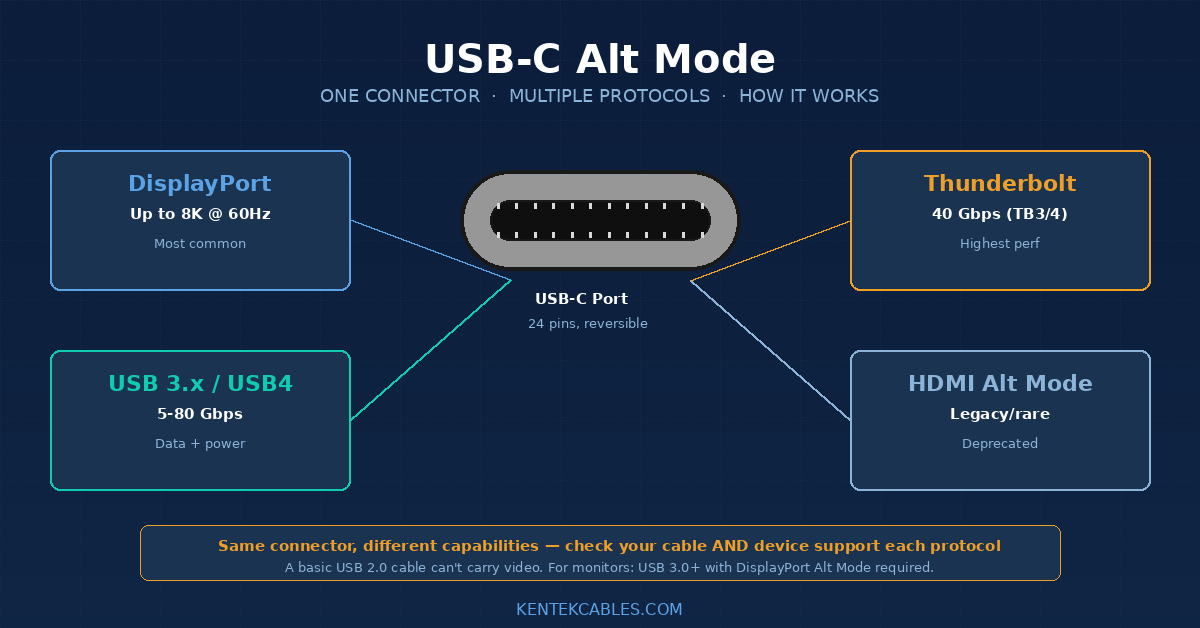

USB-C Alternate Mode (Alt Mode) is a specification that allows the USB-C connector to carry signals from other protocols — namely DisplayPort, HDMI, Thunderbolt, and even certain proprietary formats — using the same physical pins.
When you plug a USB-C cable into a port, the host device and connected device perform a handshake to determine:
-
Which protocols the cable supports
-
Which protocols both devices support
-
What configuration to use for the connection
If the cable, port, and connected device all support DisplayPort Alt Mode, the connection can carry DisplayPort video. Same for HDMI, Thunderbolt, and other modes.
The USB-C connector has 24 pins arranged in two rows. Different protocols use different combinations of these pins. The negotiation determines which pins do what for the current connection.
Common Alt Modes
DisplayPort Alt Mode (the most common)
The most widely supported and useful Alt Mode. Allows USB-C to carry up to 4 lanes of DisplayPort signal.
-
DisplayPort 1.4 over USB-C: Up to 8K at 30Hz, 4K at 120Hz, or 5K at 60Hz
-
DisplayPort 2.1 over USB-C: Up to 16K at 60Hz with compression, 8K at 60Hz uncompressed
This is what makes USB-C to monitor connections work. Your laptop sends a DisplayPort signal over the USB-C cable; the monitor's USB-C input accepts DisplayPort Alt Mode and displays the image.
Supported by: Most modern laptops with USB-C, most USB-C monitors, many docking stations, smartphones from 2018 onwards (varies by manufacturer).
Thunderbolt Alt Mode (technically a separate protocol)
Thunderbolt 3 and Thunderbolt 4 use the USB-C connector but operate as their own protocol rather than a true "Alt Mode" in the strict sense. When you plug a Thunderbolt cable into a Thunderbolt port:
-
The connection carries Thunderbolt signaling
-
Can simultaneously carry DisplayPort, PCIe, and USB signals
-
Up to 40 Gbps total bandwidth (Thunderbolt 3/4) or 80 Gbps (Thunderbolt 5)
USB4 incorporates much of Thunderbolt's design, blurring the line further. Practically speaking: if both ends are Thunderbolt or USB4, you get the full feature set.
HDMI Alt Mode (mostly deprecated)
HDMI Alt Mode allowed USB-C to carry HDMI 1.4b signals directly. It was specified in 2016 but never widely adopted. Today, USB-C to HDMI connections use one of:
-
DisplayPort Alt Mode → HDMI adapter or cable (most common)
-
Active USB-C to HDMI converter with electronics that convert the signal
If you have a USB-C to HDMI cable, it's almost certainly using DisplayPort Alt Mode internally with an HDMI-converted endpoint.
MHL Alt Mode (legacy)
Mobile High-Definition Link existed for older Android phones to output to HDMI. Largely obsolete in 2026.
What you need for Alt Mode to work
Alt Mode requires three things to align:
1. The host port must support the Alt Mode
Not every USB-C port supports every (or any) Alt Mode. Examples:
-
Apple MacBook USB-C ports — Support DisplayPort Alt Mode + Thunderbolt
-
Many Android phones — Support DisplayPort Alt Mode
-
Budget laptops with USB-C — May only support USB data + power (no Alt Mode at all)
-
Nintendo Switch USB-C dock connection — Uses DisplayPort Alt Mode
To check, look for a small DisplayPort icon (DP) or Thunderbolt icon (lightning bolt) next to the USB-C port, or check the laptop/phone specification.
2. The cable must support the protocol
This is where many users get burned. A USB-C cable can be:
-
USB 2.0 only — Charges and basic data, no Alt Mode support
-
USB 3.0/3.1/3.2 — Faster data, some Alt Mode capability depending on cable
-
USB 4 — Full Alt Mode support, including DisplayPort, Thunderbolt-compatible
-
Thunderbolt 3/4 — Highest performance, supports everything
A "charging cable" that came with your phone is typically USB 2.0 only and won't carry video signals regardless of what your devices support. For Alt Mode video, you need a USB 3.0+ cable or a dedicated Thunderbolt/USB4 cable.
3. The destination must support the Alt Mode
The monitor, dock, hub, or other device on the other end must support the Alt Mode being used.
-
USB-C monitors — Most modern ones support DisplayPort Alt Mode
-
HDMI devices — Need an adapter or converter (no native USB-C → HDMI)
-
Thunderbolt docks — Support Thunderbolt and pass-through DisplayPort
Power Delivery (PD) and Alt Mode
A great feature: DisplayPort Alt Mode and USB Power Delivery can work simultaneously over the same cable.
This is what allows your laptop to:
-
Display video on an external USB-C monitor
-
Charge from that same monitor (the monitor acts as a charger via PD)
-
Use a USB hub built into the monitor for keyboard/mouse
-
All over one USB-C cable
Some Thunderbolt docks take this further, providing:
-
Charging up to 100W
-
Multiple 4K displays
-
Multiple USB devices
-
Ethernet
-
Audio
-
All from one USB-C connection
Identifying what your cable supports
USB-C cables don't have universal markings, but quality cables print specifications on the connector or jacket:
-
Power rating: 60W, 100W, 240W
-
Data rate: "USB 2.0," "USB 3.2 Gen 2," "USB4," "40Gbps," "80Gbps"
-
Video support: "DP Alt Mode" or DisplayPort symbol
-
Thunderbolt: Lightning bolt with "3" or "4" number
Look for certified USB-IF logos with trident symbol for verifiable specifications. Counterfeit markings exist; certification provides a way to verify.
Common USB-C Alt Mode setups
Laptop to single USB-C monitor:
-
Need: USB-C cable with at least USB 3.0 + DisplayPort Alt Mode support
-
Cable length: typically 1m for full speed, up to 2m with quality cables
Laptop to two 4K monitors via dock:
-
Need: Thunderbolt 4 dock with Thunderbolt or USB4 connection to laptop
-
Cable: Thunderbolt 4 cable specifically
Phone or tablet to TV via HDMI:
-
Need: USB-C device with DisplayPort Alt Mode + USB-C to HDMI active adapter
-
Resolution: typically 4K @ 30Hz or 60Hz depending on adapter
Nintendo Switch to TV:
-
Uses the included Switch dock — proprietary implementation of DisplayPort Alt Mode
-
Won't work with arbitrary USB-C to HDMI adapters
Gaming with USB-C → DisplayPort monitor:
-
Need: USB-C cable with full DisplayPort 1.4 support for high refresh rates
-
For 4K @ 120Hz, USB4 or Thunderbolt cable required
Troubleshooting Alt Mode issues
Problem: Plug USB-C to monitor, nothing displays.
Possible causes:
-
Cable doesn't support video (USB 2.0 cable) — try a different cable
-
Port doesn't support DisplayPort Alt Mode — check device specs
-
Monitor's USB-C input isn't enabled — check monitor settings
-
Resolution mismatch — try lower resolution first
Problem: Works at 1080p but won't do 4K.
Possible causes:
-
Cable bandwidth insufficient — upgrade to USB4 or Thunderbolt cable
-
DisplayPort Alt Mode version on the source is older (DP 1.2 vs 1.4)
-
Monitor input needs to be configured for higher resolution
Problem: Video works but USB hub on monitor doesn't.
Possible causes:
-
Cable is USB 2.0 only — video can work but USB data is too slow for the hub
-
Need USB 3.0+ cable for proper hub functionality
Cable selection summary
For most users:
-
Phone charging only: Basic USB-C cable, USB 2.0 sufficient
-
External monitor (single 4K @ 60Hz): USB-C cable with DisplayPort Alt Mode, USB 3.2 Gen 2 or higher
-
Docking station with multiple monitors: Thunderbolt 4 or USB4 certified cable
-
Gaming at high refresh rates: Thunderbolt 4 cable specifically
-
Maximum future-proofing: Thunderbolt 4 cable works for everything
