USB started as a single connector standard in 1996 and has since spawned at least eight different physical connector types, plus several speed standards layered on top. The result is a confusing landscape where "USB cable" could mean wildly different things depending on what you're connecting.

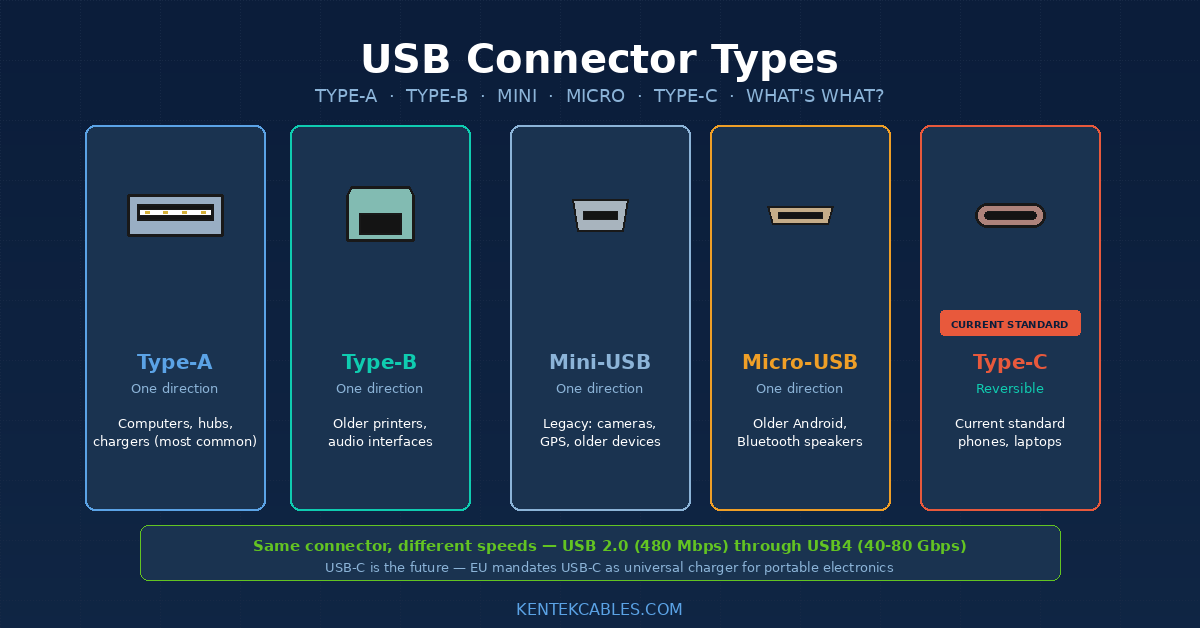

Here's a complete guide to every USB connector type you'll encounter in 2026.
The original: USB Type-A
The classic rectangular USB connector — about 12mm wide and 4.5mm tall, with a plastic insert visible inside.
Type-A characteristics:
-
Rectangular shape with one orientation only (not reversible)
-
Visible plastic divider inside the connector
-
Found on computers, USB hubs, wall chargers, game consoles
-
The "host" end of most USB cables in the past
What it's used for in 2026:
-
USB ports on desktop computers and laptops (still very common)
-
USB ports on wall chargers
-
USB hubs
-
TVs, monitors, game consoles for accessories
-
Power-only devices (USB fans, lights, etc.)
Speed variants (same connector):
-
USB 2.0 — 480 Mbps (black insert)
-
USB 3.0/3.1 — 5 Gbps (blue insert)
-
USB 3.2 Gen 2 — 10 Gbps (red or teal insert)
Despite being replaced by USB-C on many newer devices, Type-A remains incredibly common. Almost every wall charger, USB hub, and desktop computer still has Type-A ports.
Type-B (Standard)
A more square, almost trapezoidal connector. Larger than Type-A and oriented vertically.
Type-B characteristics:
-
Almost square with a slightly angled top
-
About 12mm × 11mm
-
Cable usually has Type-A on the other end (called an "A to B" cable)
-
Used on the "peripheral" end of cables
What it's used for:
-
Older printers (mostly being replaced by Type-C now)
-
Older external hard drives
-
Some audio interfaces (MIDI USB, USB DACs)
-
USB hubs (the upstream port that connects to the computer)
-
Industrial equipment
While declining in consumer use, Type-B is still common in pro audio (audio interfaces and MIDI controllers) and professional printers.
Type-B Mini (Mini-USB or Mini-B)
A small trapezoidal connector that was popular in the 2000s for portable devices.
Mini-B characteristics:
-
Trapezoidal, much smaller than standard Type-B
-
About 6.8mm × 3mm
-
Found on devices from the 2000s and early 2010s
What it was used for:
-
Older digital cameras
-
Older GPS devices
-
Older portable hard drives
-
PlayStation 3 controllers
-
Some MP3 players
-
Older external GPS devices
Status in 2026: Mostly obsolete. You'll only encounter Mini-USB on legacy equipment. New devices universally moved to Micro-USB and then USB-C.
Type-B Micro (Micro-USB)
The "old standard" for Android phones, tablets, and small electronics from 2007-2018.
Micro-USB characteristics:
-
Trapezoidal but much thinner than Mini-USB
-
About 6.85mm × 1.8mm
-
Small tab inside that breaks easily
-
One specific orientation (commonly inserted upside down)
What it's used for:
-
Older Android phones and tablets
-
Bluetooth speakers and headphones (still common!)
-
E-readers (older Kindle models)
-
Battery packs and power banks
-
Many IoT devices
-
Older cheaper electronics
Status in 2026: Slowly being replaced by USB-C, but still very common in low-cost electronics, Bluetooth speakers, e-readers, and accessories. The EU's USB-C mandate is accelerating the transition, but Micro-USB will be around for years.
Common complaint: The tab inside the Micro-USB port can break, especially after many insertions or rough use. Once it breaks, the device may not charge reliably.
Type-C (USB-C)
The current and future standard.
USB-C characteristics:
-
Oval shape, about 8.4mm × 2.6mm
-
Reversible — works in either orientation
-
24 pins arranged in two rows
-
Both ends of a USB-C cable typically have USB-C connectors
What it's used for:
-
Modern smartphones (essentially all phones in 2026)
-
Modern laptops (charging and data)
-
Tablets
-
Modern game controllers
-
E-readers
-
High-end Bluetooth headphones
-
Monitors (input + power delivery)
-
Docking stations
-
Almost every new electronic device
Why it dominates: USB-C is reversible (no upside-down confusion), small enough for portable devices, supports up to 240W power delivery, supports protocols up to 80 Gbps (Thunderbolt 5 / USB4 v2), and can carry video signals via Alt Mode (DisplayPort, Thunderbolt).
The EU mandated USB-C as the common charging connector for portable electronics starting in 2024, accelerating its dominance.
Type-B SuperSpeed (3.0/3.1 Type-B)
A modified Type-B connector with an extra "hump" on top to add USB 3.0 contacts.
Type-B SuperSpeed characteristics:
-
Same lower portion as standard Type-B
-
Additional connector portion on top with extra pins
-
Backward compatible with standard Type-B (a Type-B cable plugs in but only at USB 2.0 speeds)
What it's used for:
-
USB 3.0/3.1 external hard drives and SSDs (until they switched to USB-C)
-
Some USB 3.0 hubs
-
Some external optical drives
Type-B Micro SuperSpeed (Micro-B 3.0)
Similar trick: standard Micro-B with extra contacts added on the side.
Micro-B SuperSpeed characteristics:
-
Two connector sections side by side
-
Wider than standard Micro-USB
-
Distinctive blue color usually
What it's used for:
-
USB 3.0 external hard drives from the mid-2010s
-
Some Samsung Galaxy S5 and Note 3 (those phones used Micro-B SuperSpeed for fast file transfer)
Status in 2026: Almost obsolete. USB-C has taken over external storage.
Speed standards across connectors
USB physical connectors and USB protocol speeds are independent specifications:
USB 1.1 (1998) — 12 Mbps USB 2.0 (2000) — 480 Mbps USB 3.0 (2008) — 5 Gbps (renamed USB 3.2 Gen 1) USB 3.1 (2013) — 10 Gbps (renamed USB 3.2 Gen 2) USB 3.2 (2017) — 20 Gbps (USB 3.2 Gen 2×2 — only on USB-C) USB4 (2019) — 40 Gbps (USB-C only, optional) USB4 v2 (2022) — 80 Gbps (USB-C only)
A Type-A connector can theoretically support up to 10 Gbps (USB 3.2 Gen 2). USB-C is required for anything faster.
Common cable combinations
Type-A to Type-A: Rare. Sometimes used for special applications. Never standard for charging or data sync between computers.
Type-A to Type-B: Old printer cable, USB hub uplink cable.
Type-A to Mini-USB: Older device chargers, legacy GPS or camera cables.
Type-A to Micro-USB: Older Android chargers, Bluetooth speaker cables, e-reader cables.
Type-A to Type-C: Modern Android phone charger, fast charging cable for newer devices using older Type-A chargers.
Type-C to Type-C: Modern phone/laptop chargers, USB-C accessory cables.
Type-C to Type-B (or Mini-B/Micro-B): Bridge cables for connecting modern computers to older devices (printers, MIDI controllers, etc.).
Type-C to Lightning: Connecting modern USB-C chargers to Lightning-equipped Apple devices.
Identification tips
In the field, you can identify USB types quickly:
-
Rectangular, large: Type-A
-
Square-ish, large: Type-B
-
Small trapezoidal, thicker: Mini-USB (Mini-B)
-
Small trapezoidal, thinner: Micro-USB (Micro-B)
-
Small oval, reversible: USB-C (Type-C)
-
Blue insert on Type-A: USB 3.0+ speed capable
-
Lightning bolt icon next to USB-C: Thunderbolt capable
Buying tips
When buying USB cables, check both ends and the speed/power rating:
-
For charging only: Match the connectors on both ends. Speed doesn't matter for charging.
-
For data + charging: Match connectors AND verify the speed rating (USB 2.0, 3.0, etc.) matches your needs.
-
For modern devices: USB-C to USB-C cables with at least USB 3.0 capability future-proof you for most uses.
-
For Apple devices: Lightning until 2023; USB-C from iPhone 15+. Older iPads use Lightning.
-
For fast charging: Verify cable wattage rating (60W, 100W, 240W) matches your charger and device.
