VGA was introduced in 1987. The Berlin Wall was still up. The iPhone didn't exist. AOL was just getting started. And yet, in 2026, the iconic 15-pin blue VGA connector is still embedded in projectors, conference room equipment, KVM switches, industrial PCs, and government computer labs across the world.

Here's why VGA refuses to die, what it actually does, and how to bridge it with modern equipment.

What is VGA?

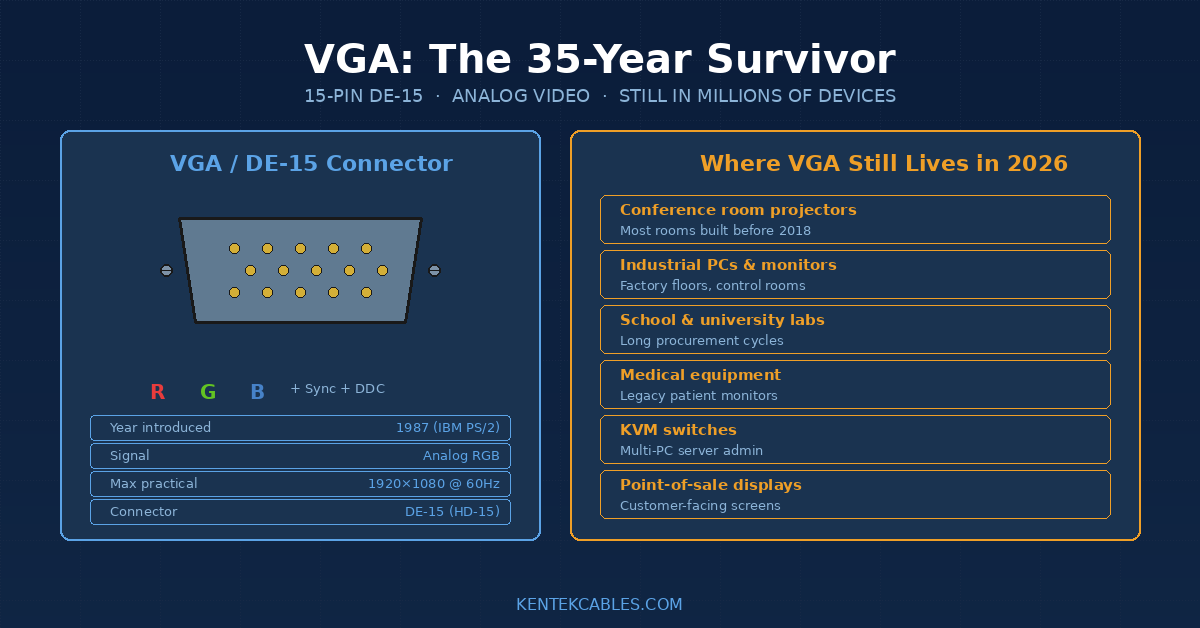

VGA (Video Graphics Array) is an analog video standard developed by IBM in 1987 for their PS/2 computer line. The connector is technically called a DE-15 or HD-15 (sometimes incorrectly called DB-15) — a high-density 15-pin D-subminiature connector with three rows of 5 pins each.

Unlike modern digital video standards (HDMI, DisplayPort), VGA carries:

  • Analog RGB video signals — separate red, green, and blue signals as continuous voltages

  • Horizontal and vertical sync signals

  • No audio — VGA is video only

  • DDC (Display Data Channel) — limited data exchange for plug-and-play monitor identification

Because VGA is analog, it's affected by cable quality, length, and electrical noise in ways digital connections aren't. A bad VGA cable causes blurry images, ghosting, or color shifts. A good one delivers crisp images even at high resolutions.

Why is VGA still around?

Multiple stubborn factors keep VGA in active use:

Reason 1: Legacy infrastructure that works. A conference room projector installed in 2010 still works perfectly in 2026. The school auditorium's overhead projector still has VGA inputs. The factory floor's industrial PC has a VGA monitor that's been running 24/7 for 15 years. There's no business case to replace working equipment.

Reason 2: Government and institutional procurement cycles. Government computers, military equipment, hospital systems, and university labs follow long procurement cycles — sometimes 10-15 years. Equipment purchased in 2012 with VGA outputs is still operational and supported.

Reason 3: Simplicity and reliability. VGA has no copy protection (HDCP), no version compatibility issues, no handshake requirements. Plug it in, it works. For mission-critical applications (security cameras, industrial control screens, broadcast monitors), this simplicity is valuable.

Reason 4: KVM switch compatibility. Many enterprise KVM (Keyboard-Video-Mouse) switches still use VGA as a baseline because they need to support computers across many years of equipment.

Reason 5: Cost. VGA cables and adapters are cheap. A 25-foot VGA cable costs $10-15; an equivalent HDMI cable can run higher because of more recent specifications.

VGA specifications

Maximum resolution support:

  • 640×480 @ 60Hz (original VGA, 1987)

  • 1024×768 @ 60Hz (SVGA, 1989)

  • 1280×1024 @ 60Hz (SXGA, common 2000s monitors)

  • 1920×1080 @ 60Hz (Full HD - well supported)

  • 2048×1536 @ 60Hz (QXGA - the practical maximum)

Beyond 1080p, VGA quality degrades quickly. The analog signal can't compete with digital for high-resolution displays, which is why all modern monitors moved to DVI, HDMI, and DisplayPort.

Maximum cable length:

  • 6-15 feet: excellent quality at any resolution

  • 25-50 feet: good quality, slight degradation at high resolutions

  • 50-100 feet: noticeable quality loss, may need active boosters

  • 100+ feet: requires VGA extenders/amplifiers

The 15 pins explained

Pin 1: Red video Pin 2: Green video Pin 3: Blue video Pin 4: ID2 (monitor detection, often unused) Pin 5: Ground (sync ground) Pin 6: Red ground Pin 7: Green ground Pin 8: Blue ground Pin 9: +5V DC (some implementations) Pin 10: Ground (sync ground) Pin 11: ID0 (monitor detection, often unused) Pin 12: DDC SDA (monitor data) Pin 13: Horizontal sync Pin 14: Vertical sync Pin 15: DDC SCL (monitor clock)

The separate ground pins for each color signal help reduce crosstalk between the three video channels in long cable runs.

Common VGA applications in 2026

Office equipment:

  • Conference room projectors (especially in older buildings)

  • Lecture hall display systems

  • Training room equipment

  • Trade show booth displays

Industrial:

  • Manufacturing control screens

  • Industrial PC displays

  • Process control monitors

  • Quality control inspection systems

Healthcare:

  • Older patient monitoring equipment

  • Lab instrument displays

  • Medical imaging consoles (older systems)

Education:

  • School computer labs (especially K-12)

  • University classroom equipment

  • Library workstation monitors

Specialty:

  • Broadcast equipment (older video monitors)

  • Security/surveillance monitors

  • Point-of-sale customer displays

  • Server room KVM consoles

VGA to modern displays — adapters

The most common VGA challenge: how do you connect a VGA source to a modern HDMI or DisplayPort monitor?

VGA to HDMI active converter:

  • Required because VGA is analog and HDMI is digital

  • "Active" means it has electronics inside to convert the signal

  • Powered via USB or included adapter

  • May include audio injection (since HDMI carries audio)

  • Typical cost: $15-30

VGA to DisplayPort active converter:

  • Similar to VGA-HDMI but outputs DisplayPort

  • Less common (most modern monitors have HDMI anyway)

  • Cost: $20-40

HDMI to VGA active converter (reverse direction):

  • For connecting modern HDMI sources (laptops, streaming boxes) to older VGA projectors

  • Active electronics required to convert digital to analog

  • May extract audio to a separate 3.5mm jack

  • Cost: $10-20

Important: "Passive" VGA adapters that just rewire pins do NOT work between analog and digital. You'll see cheap VGA-to-HDMI cables advertised; they only work if your source has a "DVI-I" port that outputs both analog and digital signals on the same connector.

Cable quality matters

For analog signals, cable quality directly affects image quality. Look for:

Quality features:

  • Coaxial inner conductors for each RGB signal (not just twisted pair)

  • Ferrite chokes on both ends (the cylindrical bumps near the connectors) — these reduce EMI

  • Gold-plated pins for corrosion resistance

  • Triple-shielded construction for long runs

  • Solid copper conductors (not copper-clad aluminum)

Avoid:

  • Generic "no-brand" cables for long runs

  • Anything advertised as just "VGA cable" without specifications

  • Cables thinner than 0.25" diameter for runs over 15 feet

VGA extenders and amplifiers

For very long VGA runs (50+ feet), passive cables aren't enough — the signal degrades too much. Solutions include:

VGA over Cat5/Cat6 extenders:

  • A pair of devices (transmitter + receiver) that send VGA over a single Cat5e/Cat6 Ethernet cable

  • Range: up to 1000 feet for some models

  • Cost: $50-200 per pair

VGA amplifiers/boosters:

  • Inline device that regenerates the signal mid-cable

  • Useful for runs in the 100-300 foot range

  • Cost: $30-80

Fiber optic VGA extenders:

  • For very long runs (1000+ feet) or installations crossing buildings

  • Convert VGA to fiber optic signal and back

  • Cost: $200-500 per pair

Buying tips

For most VGA needs:

  • Short runs (under 15 feet): Any quality VGA cable works fine. Cost: $5-15.

  • Medium runs (15-50 feet): Look for shielded VGA cables with ferrite chokes. Cost: $15-30.

  • Long runs (50+ feet): Consider VGA over Cat5/Cat6 extenders. Cost: $50+ per setup.

  • Multiple monitors from one source: VGA splitter/amplifier. Cost: $20-50.

For laptop-to-projector connections, a HDMI-to-VGA active converter ($10-20) is usually the simplest solution.

At Kentek, we carry VGA cables in lengths from 3ft to 100ft, plus HDMI to VGA active converters, VGA to HDMI converters, and VGA gender changers and extenders.
