If you've ever tried to run a standard HDMI cable longer than 25 feet, you've probably run into problems — signal dropouts, sparkles on screen, or a completely blank display. That's because traditional copper HDMI cables hit their physical limits at longer distances. Active Optical HDMI cables solve this problem by replacing the copper data conductors with fiber optic strands.
How standard HDMI cables work
A traditional HDMI cable uses twisted copper wire pairs to carry high-speed digital video and audio signals. At short distances (under 15-20 feet), this works perfectly. But copper conductors have a fundamental limitation: the higher the data rate and the longer the cable, the more the signal degrades.
A 4K signal at 60Hz requires 18 Gbps of bandwidth. An 8K signal at 60Hz needs 48 Gbps. At these data rates, copper simply can't maintain signal integrity over long distances. The electromagnetic interference between the tightly packed wire pairs (crosstalk), the resistance of the conductor, and the capacitance of the cable all work against you.
This is why a 50-foot passive HDMI cable often won't work for 4K content, even if it's advertised as "4K compatible."
How Active Optical HDMI cables work

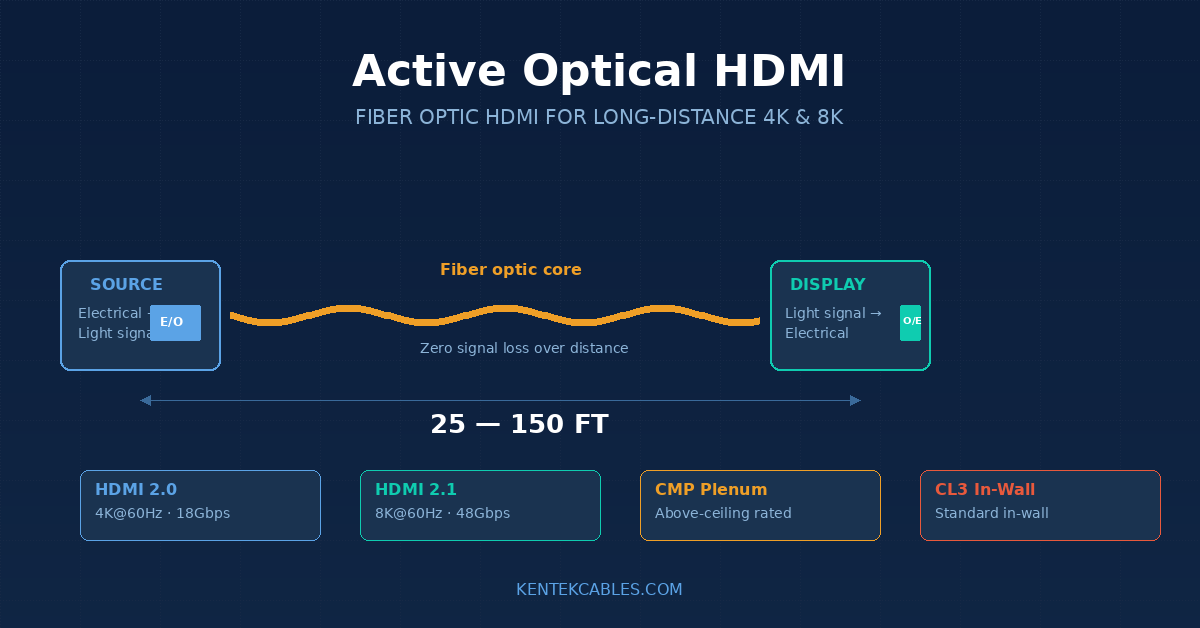

An AOC HDMI cable replaces the copper data conductors with fiber optic strands. Inside each HDMI connector, there's a tiny electro-optical transceiver chip. On the source end (your computer, Blu-ray player, or game console), the chip converts the electrical HDMI signal into light pulses. Those pulses travel through the fiber optic strands — which are immune to electromagnetic interference and have virtually zero signal loss — to the display end, where another chip converts the light back to an electrical HDMI signal.
The result is a cable that can carry full 4K at 60Hz (or 8K at 60Hz for HDMI 2.1 AOC cables) over distances of 25 to 150 feet or more with zero quality loss. The picture at 150 feet is identical to the picture at 3 feet.
Most AOC cables are "hybrid" designs that include a few copper wires alongside the fiber strands. The copper handles the low-speed HDMI functions — EDID communication, CEC control, and sometimes ARC (Audio Return Channel) — while the fiber handles the high-speed video data. This hybrid approach means AOC cables support the full HDMI feature set.
Key things to know about AOC cables
They're directional. Unlike passive HDMI cables, AOC cables have a designated SOURCE end and DISPLAY end. The connectors are labeled. If you plug them in backward, you'll get no signal. Always check the labels before running cable through a wall or ceiling.
They're thinner and lighter. A typical AOC cable has an outer diameter of just 4.8mm — much thinner and more flexible than a heavy 24 AWG passive HDMI cable. This makes them easier to route through conduit and tight spaces.
They're more fragile than copper. The fiber optic strands inside can break if the cable is bent too sharply or kinked. Most manufacturers recommend a minimum bend radius of about 30mm. Don't step on them, don't crush them in a door, and don't coil them tightly. Handle them more like fiber optic cable than like an extension cord.
They need no external power for most installations. The transceiver chips inside the connectors draw their power from the HDMI port itself (5V). However, some older or lower-power HDMI sources may not supply enough current. In those cases, a Micro USB power adapter (usually included with the cable) can supplement the power at the source connector.
CMP vs CL3: choosing the right fire rating
When installing AOC HDMI cables in a commercial or residential building, the fire rating of the cable jacket matters. Building codes specify what type of cable can be installed in different spaces.
CL3 (Class 3) cables are rated for standard in-wall installation. Use CL3 when you're running cable inside wall cavities, behind drywall, or through conduit that isn't in an air handling space. CL3 is the right choice for most residential home theater installations and standard commercial AV runs.
CMP (Communications Multipurpose Plenum) cables carry the highest fire safety rating. They're required in plenum spaces — the open areas above drop ceilings and below raised floors where HVAC systems circulate air. CMP cables use special low-smoke, flame-retardant jacket materials. If you're installing HDMI in a commercial building with a drop ceiling, building codes almost certainly require CMP/plenum-rated cable.
When in doubt, CMP is always the safe choice — it's approved for all installation locations, including in-wall.
When do you need an AOC HDMI cable?
You need an AOC cable when the distance between your source and display exceeds 25 feet, you need 4K at 60Hz or 8K at 60Hz at any distance over 15 feet, you're running cable through walls or ceilings (AOC cables don't pick up interference from nearby electrical wiring), or you need a thinner cable that's easier to route through conduit.
You don't need an AOC cable when your cable run is under 15 feet (a standard passive HDMI cable works perfectly at short distances), or you need a bidirectional cable that works plugged in either direction.
HDMI 2.0 vs HDMI 2.1 AOC cables
HDMI 2.0 AOC cables support 4K at 60Hz with 18 Gbps bandwidth. This covers the vast majority of current 4K displays, projectors, and media players. If you're connecting to a 4K TV or a conference room projector, HDMI 2.0 is almost certainly sufficient.
HDMI 2.1 AOC cables support 8K at 60Hz and 4K at 120Hz with 48 Gbps bandwidth. You need HDMI 2.1 if you're connecting to an 8K display, a gaming monitor that supports 4K at 120Hz (PS5, Xbox Series X), or you want maximum future-proofing.
At Kentek, we carry both HDMI 2.0 and HDMI 2.1 Active Optical cables in CMP (plenum) and CL3 (in-wall) ratings, from 25 to 150 feet. All cables are UL listed with gold-plated connectors.
