If you've ever been to a concert, recording studio, podcast set, or church AV booth, you've seen XLR cables. They're the thick, heavy-duty audio cables with the distinctive 3-pin metal connectors that lock into place with a satisfying click. While consumer audio uses RCA and 3.5mm jacks, professional audio runs on XLR — and there's a very good reason for it.
This guide covers what XLR cables do, why balanced audio matters, and how phantom power works.
What is an XLR cable?
XLR is the standard professional audio cable, defined by the connector type rather than a specific protocol. The standard XLR connector has 3 pins arranged in a triangle pattern inside a cylindrical metal housing. The connector locks into place with a release tab, preventing accidental disconnection during a live performance.
The "XLR" name comes from Cannon, the company that originally designed it (X = original, L = added latch, R = added rubber compound around the contacts). The full name is "Cannon XLR," but everyone just says "XLR."
XLR cables come in male (with 3 pins) and female (with 3 holes) configurations. A standard XLR cable has a male connector on one end and a female on the other — the female end connects to the source (microphone), and the male end connects to the destination (mixer, audio interface).

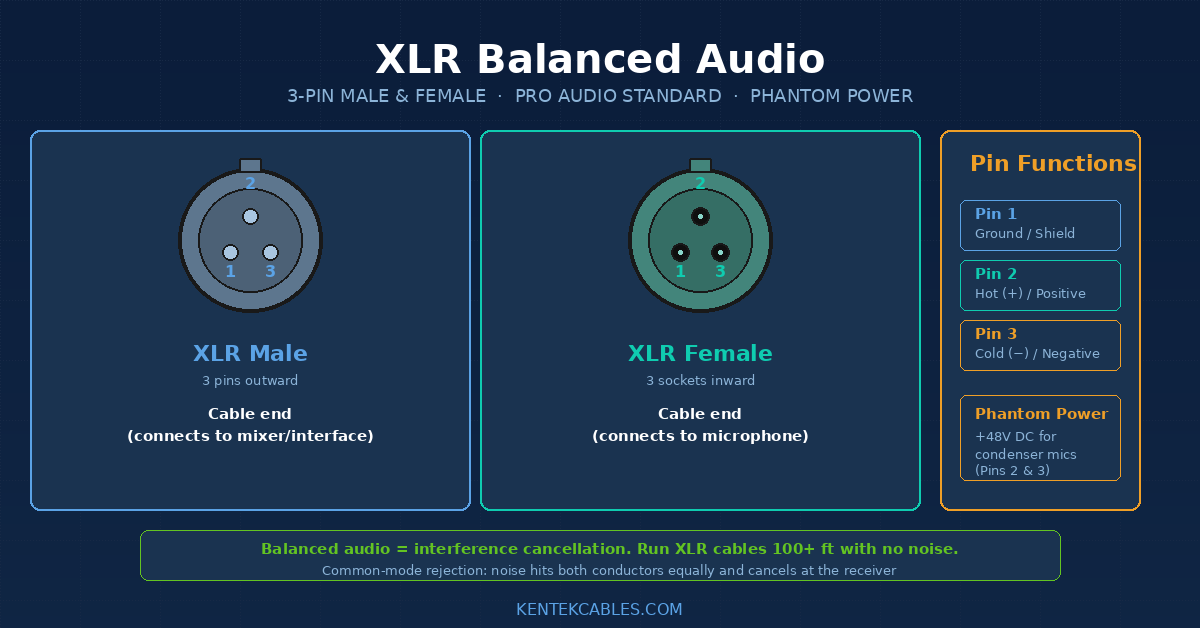

The 3 pins explained
Each pin in an XLR connector has a specific function:
Pin 1 — Ground / Shield — Connects to the cable's shield (the braided or foil layer around the conductors). This shield protects the audio signal from electromagnetic interference.
Pin 2 — Hot / Positive — Carries the audio signal in its normal polarity. This is the "in-phase" or "+" signal.
Pin 3 — Cold / Negative — Carries the same audio signal but with inverted polarity. This is the "out-of-phase" or "−" signal.
The combination of Pin 2 (positive) and Pin 3 (negative inverted) is what makes XLR a balanced audio connection — and balanced audio is the key to XLR's professional advantages.
Why balanced audio matters
This is the core technical advantage of XLR. Here's how balanced audio works:
A microphone outputs an audio signal. The cable splits that signal into two copies — one normal (Pin 2), one inverted (Pin 3). Both signals travel through the cable's two conductors.
As the cable runs through your venue, it picks up electromagnetic interference (EMI) from lighting dimmers, power cables, fluorescent lights, and other electrical equipment. Crucially, that EMI hits BOTH conductors equally because they're side by side in the same cable.
At the receiving end, the audio interface or mixer flips the polarity of Pin 3 back to normal and adds the two signals together. The original audio signals (which were opposites) become the same and reinforce each other. The interference signals (which were identical on both lines) cancel out completely.
This is called common-mode rejection, and it's why you can run XLR cables for 100+ feet across a stage with no audible noise — even alongside power cables that would destroy an unbalanced (RCA or 3.5mm) signal in 20 feet.
Phantom power (+48V)
XLR cables can carry phantom power — a +48V DC voltage that condenser microphones need to operate. The voltage runs on Pins 2 and 3 simultaneously, with Pin 1 as ground.
Phantom power is supplied by mixers, audio interfaces, and dedicated phantom power supplies. The microphone draws the small amount of power it needs to operate the internal amplifier and capsule.
Important things to know about phantom power:
-
Most condenser microphones (Shure SM7B is a notable exception, requiring an external preamp) need +48V phantom power to function
-
Dynamic microphones (Shure SM58, SM57) don't need phantom power and aren't damaged by it
-
Ribbon microphones can be DAMAGED by phantom power if the cable has wiring issues — never connect a ribbon mic with phantom power on
-
Always turn phantom power OFF before unplugging or moving microphones to prevent loud pops and equipment damage
XLR cable construction
A quality XLR cable consists of:
Two conductors — One for the positive signal (Pin 2), one for the negative (Pin 3). Usually 22 AWG or 24 AWG oxygen-free copper.
Shield — A braided or foil shield surrounding the conductors, connected to Pin 1 (ground). Higher-end cables use a combination of braided + foil shielding for maximum interference rejection.
Strain relief — Heavy-duty rubber or molded jacket where the cable enters the connector, preventing internal wires from breaking with repeated movement.
Latching connector — Metal locking mechanism that secures the cable to the equipment.
Color-coded boots — Many touring rigs use color-coded XLR boots (red, blue, yellow) to identify cable types or routing.
Common XLR cable types and lengths
Standard XLR microphone cable — Male to female, used for connecting a mic to a mixer or audio interface. Standard lengths: 6ft, 10ft, 15ft, 20ft, 25ft, 50ft, 100ft.
XLR snake cables — Multiple XLR cables bundled together (4, 8, 12, or more channels) for stage-to-mixer connections. Often used in live sound and recording.
XLR to TRS (1/4-inch) — Connects XLR equipment to gear with TRS line inputs. Common for connecting mixer outputs to powered speakers.
XLR to XLR with switch — Includes a mute switch in the cable, useful for podcasters and broadcasters who need to mute on the fly.
XLR splitter (Y-cable) — Splits one XLR into two, allowing one source to feed two destinations.
XLR extension — Female to male, used to extend an existing XLR cable.
Buying guide
Pro audio is one area where cable quality genuinely affects sound quality (unlike digital cables where it's mostly about reliability). Look for:
-
Star-quad construction — Four conductors instead of two, with the same signal on opposite pairs. Provides extra interference rejection for very long runs or high-EMI environments.
-
Neutrik connectors — The industry standard for reliability. Cables with Neutrik connectors cost more but last decades.
-
Heavy-gauge conductors — 22 AWG or thicker for low impedance and better signal transfer.
-
Braided shield + foil — Combined shielding rejects more interference than either alone.
-
Heat-shrink reinforced strain relief — Prevents internal wire breakage.
Cheap XLR cables (under $5) work for occasional use but tend to fail at the connector after repeated coiling. For professional or daily use, expect to spend $15-$30 for a quality 10-foot XLR cable.
At Kentek, we carry XLR cables in lengths from 3ft to 100ft, plus XLR-to-TRS adapters, splitters, and extensions for studio and live sound applications.
